Challenging Working Condition Breakthrough Case — PTA Residue Recovery System (R2R)

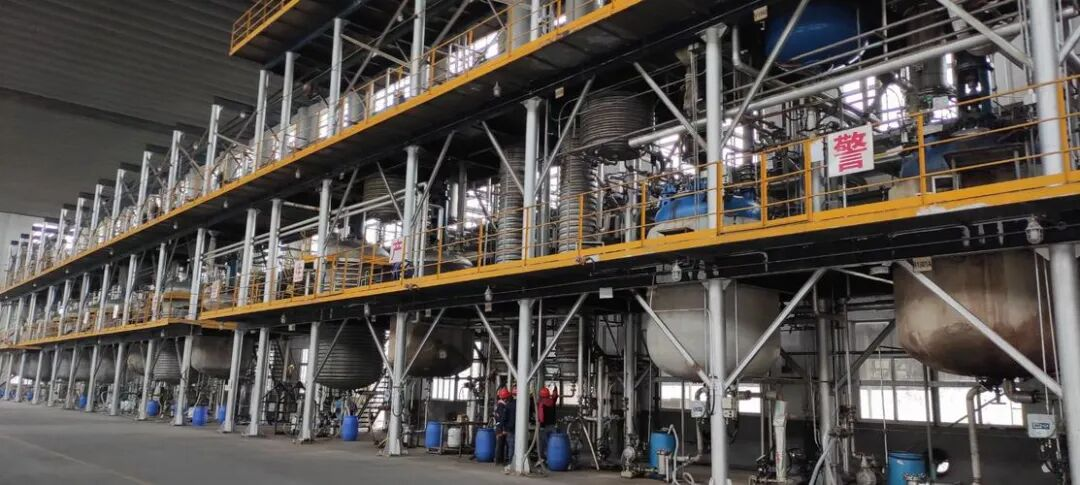

In the production of Purified Terephthalic Acid (PTA), the Residue Recovery System (R2R) plays a crucial role in green manufacturing and resource recycling. Through high-temperature pyrolysis in an oxygen-free environment, organic residues generated during the PTA process are thermally cracked: large organic molecules are converted into combustible gases and benzoic-acid-rich oils, while valuable cobalt and manganese catalysts are concentrated in the ash phase. These catalysts are then recovered through alkaline washing, dissolution, filtration, and refining, forming regenerated catalyst solutions that return to the main reaction process.
This entire closed-loop system transforms hazardous waste into valuable resources—making the R2R unit not only the environmental “lifeline” of a PTA plant, but also a key driver of cost reduction and competitiveness.
The Harsh Reality of R2R Working Conditions
Due to its critical role and extremely complex media composition, the R2R unit is one of the harshest sections in the entire plant. It imposes tremendous challenges on all key equipment, especially valves:
- Crystallization & Coking

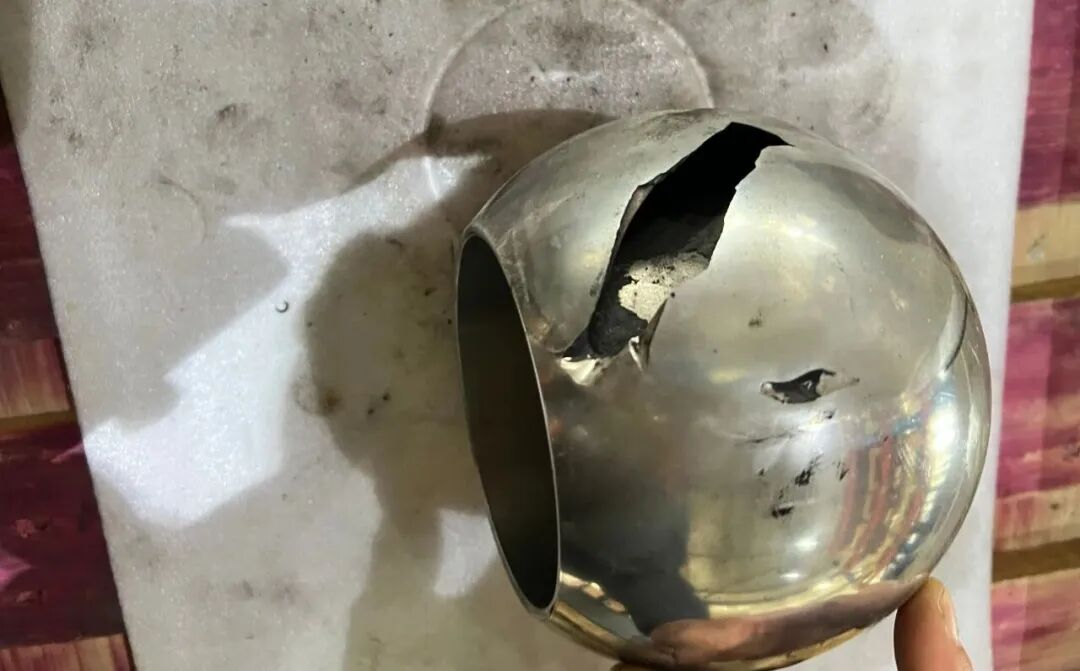

PTA residues easily crystallize or coke when temperatures fluctuate, leading to valve sticking, poor movement, and unstable control. - Severe Corrosion & Erosion
The medium contains bromides, organic acids, and solid catalyst ash. These cause intense chemical corrosion and mechanical erosion, rapidly destroying sealing surfaces. - High Temperature & Thermal Cycling Stress
Sustained High Temperatures accelerate material creep and aging, while repeated thermal cycles induce stress cracking.
These three problems overlap and amplify one another, making valves the weak link restricting long-cycle, stable R2R operation.
Traditional Solutions Hit a Bottleneck
Titanium valves resist corrosion but cannot withstand high-velocity erosion.

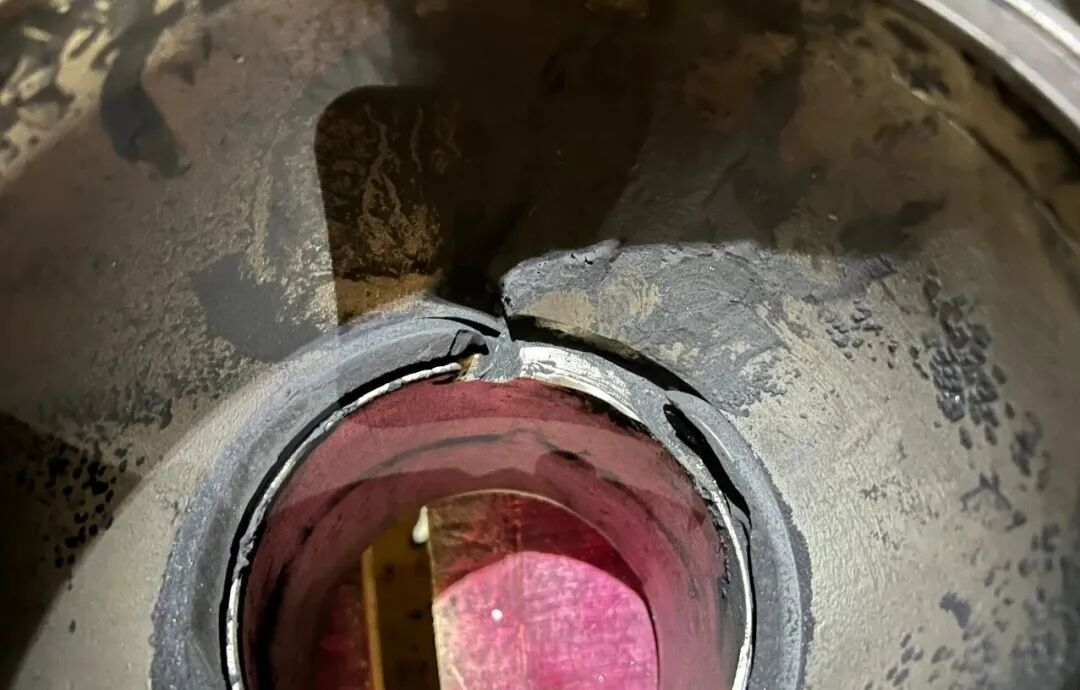

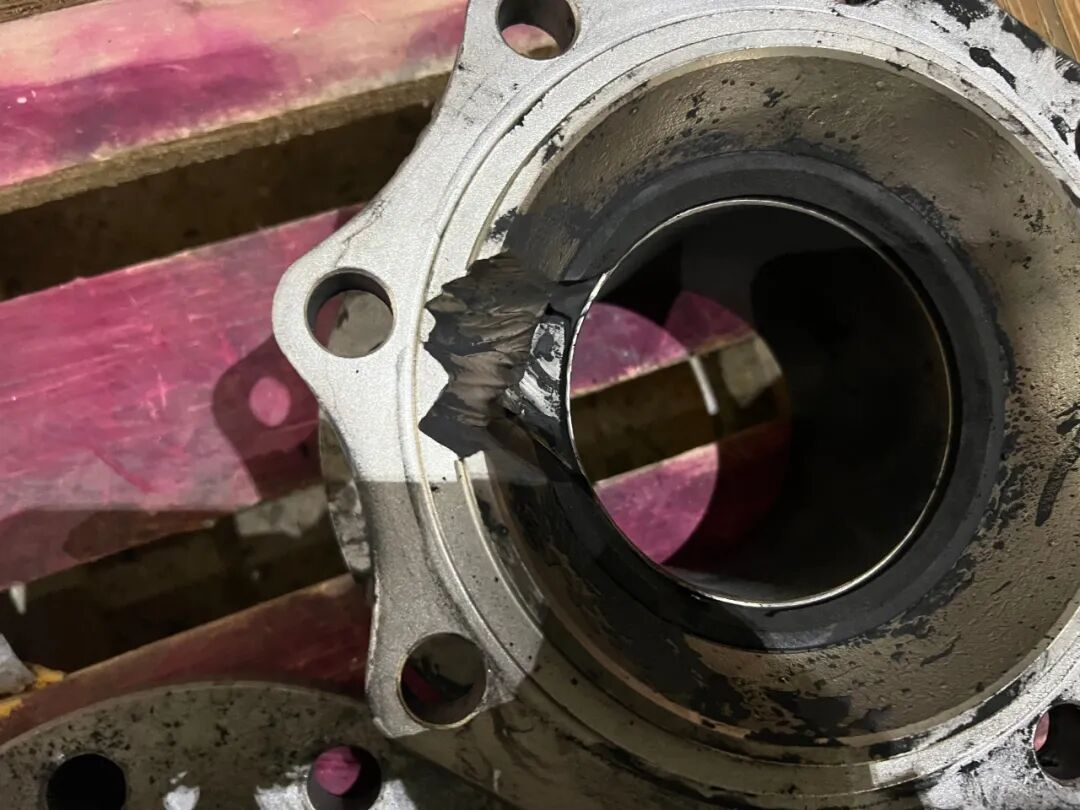

Stellite-coated valves offer balanced performance but suffer from inevitable coating peeling or spalling.
These limitations drove the industry to seek a fundamentally different solution.
The Breakthrough: KOWOV Ceramic Valves
KOWOV’s advanced Ceramic Valves directly address the core pain points of R2R applications.
Unmatched Material Performance
- Ceramic hardness exceeds HRA 90, far beyond traditional metal alloys, easily resisting severe particle erosion.
- Excellent chemical inertness provides outstanding resistance to bromides, organic acids, and other aggressive media.
- Mirror-smooth ceramic surfaces significantly lower adhesion, reducing coking and buildup.
Results in Real PTA R2R Operations

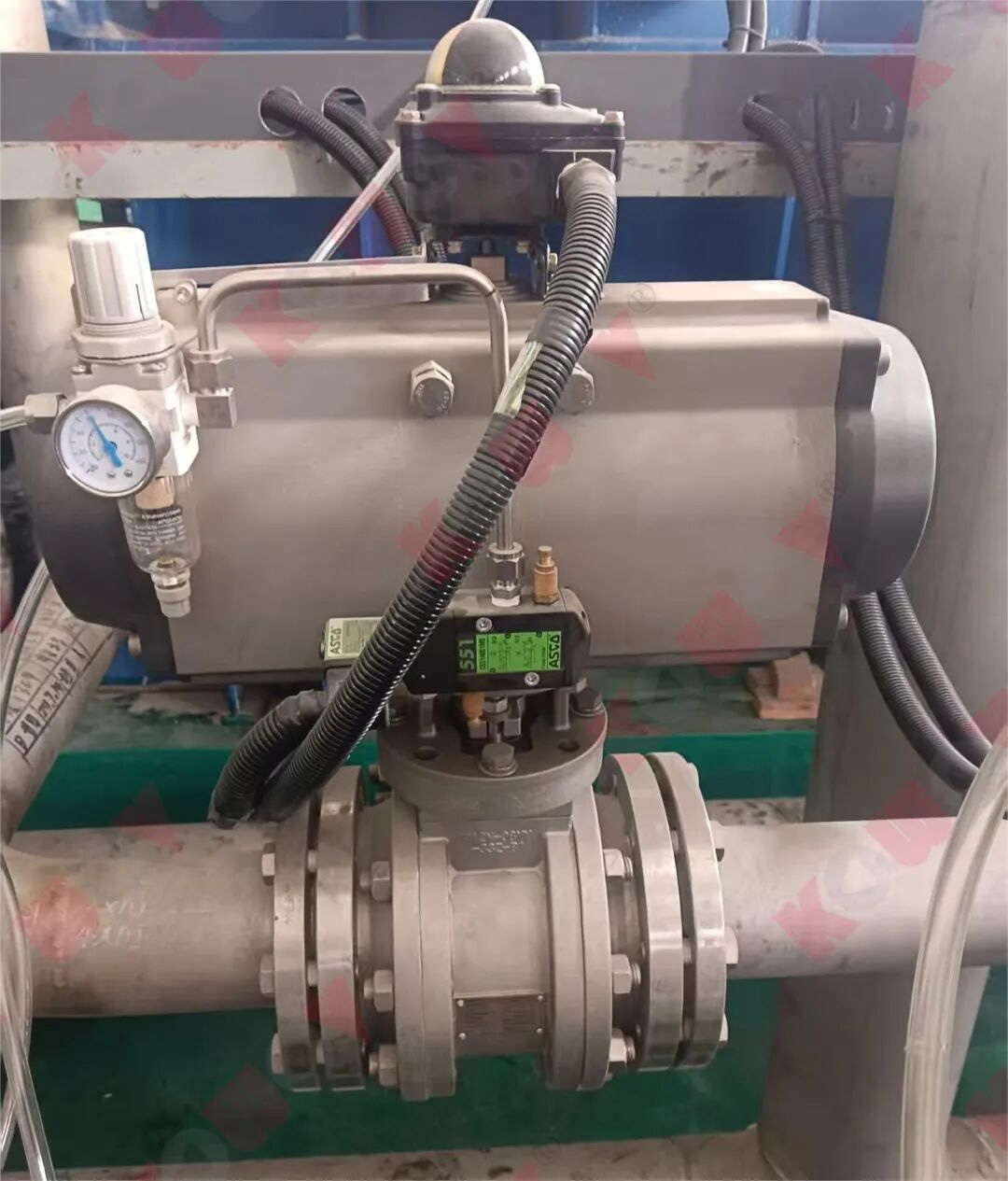

During continuous industrial operation, KOWOV Ceramic Valves delivered remarkable performance:
- Service life improved by 5–8×compared to metal valves
- Valve sticking and coking issues almost eliminated
- Inner leakage drastically reduced, ensuring stable process control
- Catalyst purity improved due to reduced valve wear
- Unplanned shutdowns dropped sharply, extending continuous run time
Case Result — Major PTA Project

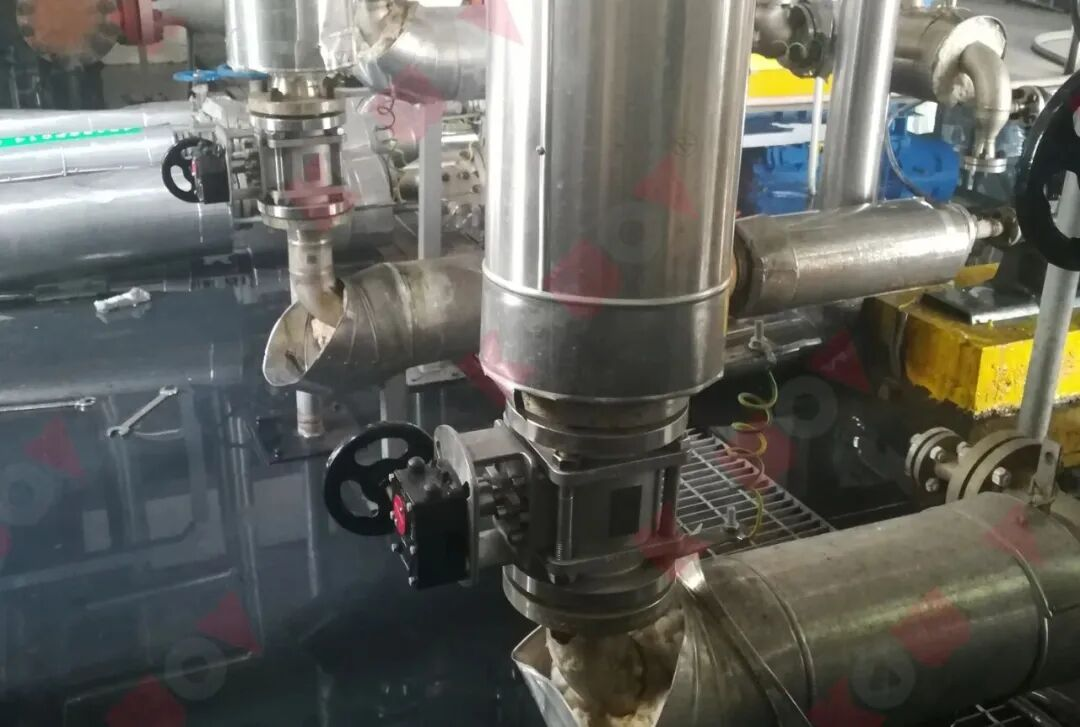

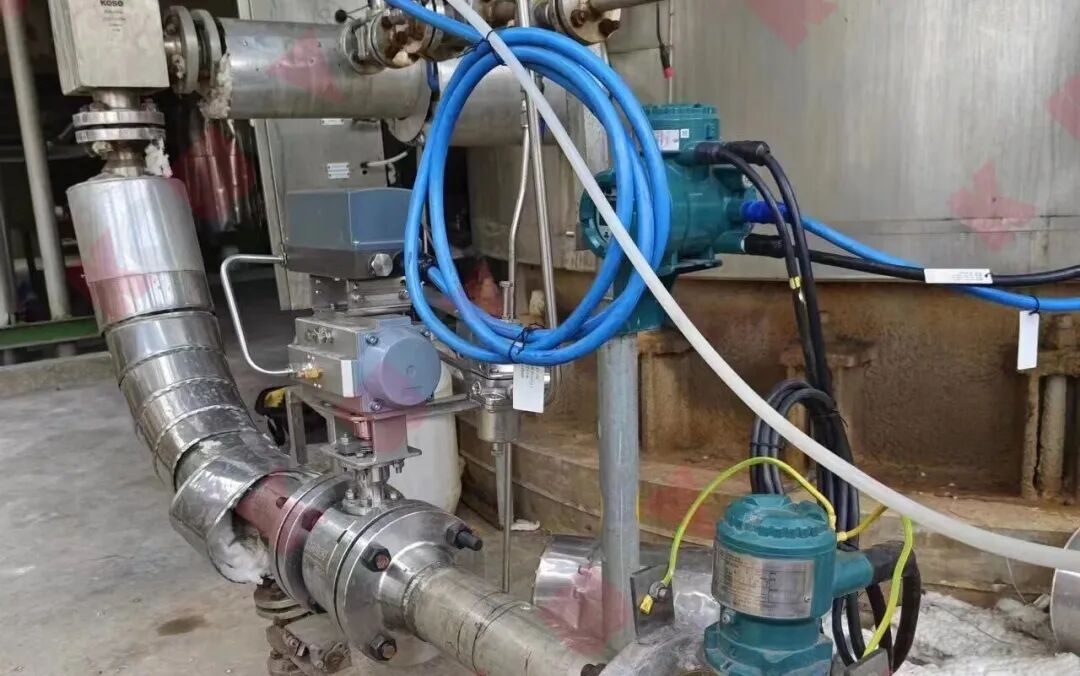

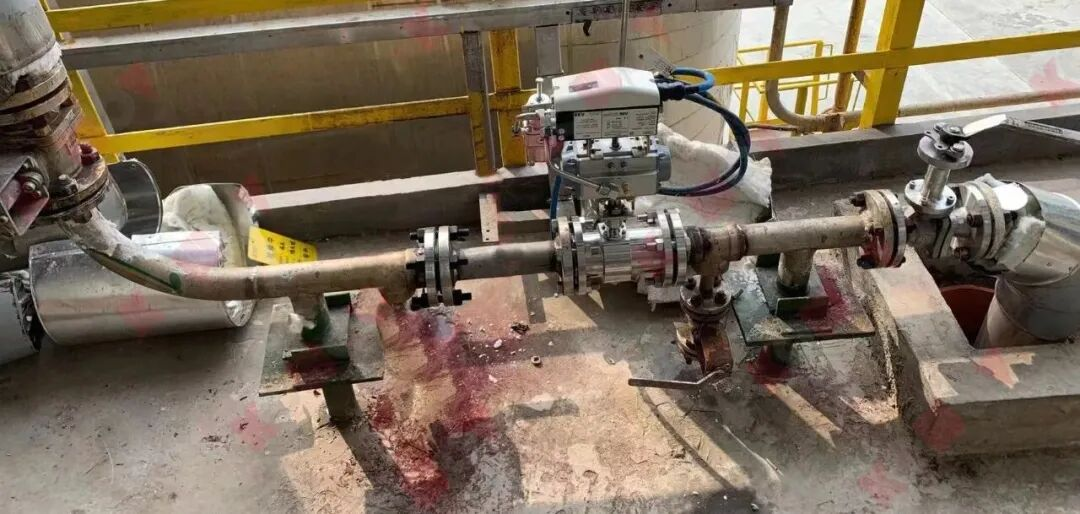

After fully replacing traditional valves with KOWOV Ceramic Valves in critical R2R positions, one major PTA plant achieved:
- 70% reduction in maintenance costs
- Valve replacement cycle extended from 3 months to 18+ months
- 15% increase in continuous operation rate
- Elimination of process fluctuations caused by valve leakage
- Improved environmental compliance and operational safety
Conclusion
The successful application of KOWOV ceramic valves in R2R systems represents a major technological breakthrough for the PTA industry. It not only overcomes long-standing technical barriers but also provides strong support for the industry’s pursuit of higher efficiency, lower emissions, and reduced operating costs.
As material science and manufacturing technologies continue to advance, ceramic valves will play an increasingly important role across complex chemical processes. KOWOV is proud to lead this transformation—setting a new industry standard for reliability and performance in R2R valve applications.
