Ceramic Ball Valves Encyclopedia – Application Research

Metal valves have been the dominant fluid control components in global industrial operations for more than a century. Despite decades of structural refinements and material upgrades, their adaptability to severe operating conditions—such as high abrasion and extreme corrosion—has grown increasingly limited due to the intrinsic properties of metallic materials. These drawbacks manifest primarily in short service lives, poor sealing performance, and heightened leakage risks, all of which severely undermine the stability and reliability of industrial system operation. Against this backdrop, traditional metal valves require a fundamental transformation across material systems, structural design, and manufacturing processes.

Advanced ceramic materials, a key category of new materials prioritized for development in the 21st century, have emerged as a research hotspot in materials science. Their application in industrial valve manufacturing constitutes an innovative and practical direction for technological exploration. In terms of material properties, ceramics exhibit ultra-low deformation and bond strength far surpassing that of metallic materials. Their crystal structures are typically characterized by small ionic radii, high ionic charge, and high coordination numbers—an inherent attribute that endows ceramics with exceptional tensile strength, compressive strength, elastic modulus, and hardness, laying a core material foundation for withstanding severe industrial operating conditions.

That said, the intrinsic brittleness and high machining difficulty of ceramic materials have long constrained their scope of industrial application. Over the past decade, breakthroughs in martensitic phase transformation toughening, composite material modification, and nanoceramic technologies have significantly alleviated ceramic brittleness, drastically enhanced their toughness and mechanical strength, and steadily expanded their application scenarios. Today, advanced ceramic materials are seeing growing adoption in industrial sectors including petroleum, chemical engineering, and machinery manufacturing. Fabricating critical components from these materials to replace traditional metallic parts—leveraging their outstanding wear and Corrosion Resistance—has become a pivotal development trend in the high-tech materials market.

Building on these technological breakthroughs, state-of-the-art ceramic valves are now widely utilized across core industrial fields: power generation, petroleum, chemical engineering, metallurgy, mining, and wastewater treatment. Their performance advantages come to the fore especially in extreme harsh operating conditions—high abrasion, extreme corrosion, High Temperature, and high pressure. Unlike traditional metal valves, ceramic valves not only adapt stably to severe service environments but also boast an ultra-long service life as their core merit, delivering a significantly superior cost-performance ratio compared to equivalent metallic products.

With the continuous advancement of science and technology, ceramic material formulation optimization, forming processes, precision machining, and assembly technologies have gradually matured and been refined. The superior performance of Ceramic Valves has thus gained widespread industry recognition. Furthermore, the successful R&D and application experience of Ceramic Valves can be extended to a broader range of engineering fields, providing novel solutions for the material upgrading and performance enhancement of industrial equipment.

In the sections that follow, we examine the primary application fields of Ceramic Ball Valves from leading domestic and international brands.



I. Brand-specific Descriptions

1.Nil-Cor：

APPLICATIONS AND END USER SAMPLE

• Chemical Process Industry:Production of chlorine, HCL, Sulfuric Acid, EDC and many other industrial chemicals. Users: Dow, Dupont, Bayer, BASF, Formosa Plastics, G.E. Plastics, Occidental Chemical, Monsanto, PPG Industries.
• Pulp and Paper:Bleaching chemicals, caustic, sodium hypochlorite, chlorine dioxide, lime mud, HCL, sulfuric acid. Users: Champion International, International Paper, Weyerhauser, Simpson, McMillan Bloedel, Union Camp.

• Mining and Minerals:Titanium dioxide, titanium tetrachloride, HCL, sulfuric acid, sodium hydroxide, produced water, electrolyte. Users: Dupont, Millenium, Louisiana Pigments, Climax Molybedenum, Noranda CCR, Asarco, Phelps Dodge, Kesase Cobalt, Molycorp, Solvay, Cal Energy Zinc, Magnola.

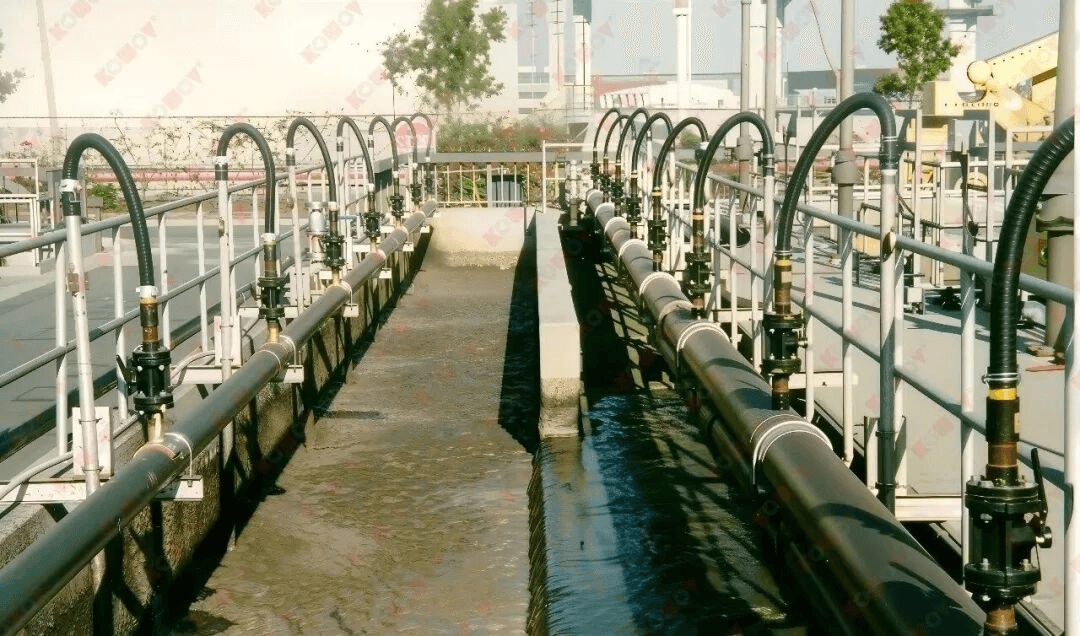

• Municipal Waste Treatment:Sodium hypochlorite, sodium bisulfate, ferric chlorite, HCL, sulfuric acid, chlorine gas. Users: St. Louis Water District, City of Saginaw, PVS Technologies, Bloomfield RTB, Monroe County water District, Kemwater, City of Birmingham, Norfolk Naval Base.

• Marine Services:Seawater, CHT systems, oily bilge water, compressed air manifolds, water treatment chemicals, pier-side waste hookups, fire protection systems, dry dock services. Users: Norfolk Naval Base and Shipyard, Newport News Shipbuilding, Craney Island Naval Facility, Long Beach Naval Base, Mayport Naval Base, Charleston Naval Base and Shipyard.
• Steel Pickling:HCl pickle liquor, ferrous chloride, ferric chloride, sulfuric acid, nitric acid, HF acid, hydrogen chloride gas, spent pickle liquor, concentrated pickle liquor, sodium hydroxide, tin plate solution, chlorine gas. Users: AMROX, ISSI, Timken, LTV, AK Steel, National Steel, PVS Tech, NUCOR Steel, Worthington Steel, Huntco Steel.

• Power Generation:Demineralized water, sodium hydroxide, salt water, limestone slurry FGD, lime slurry, HCL injection, fly ash slurry. Users: ABB Environmental, AEP, Con Edison, California Energy, Houston Light and Power, Korean Electric Power, Long Island Lighting, Public Service of N.J., S. California Energy.
• Petroleum Refining:Sulfuric acid, sodium hydroxide, wastewater with hydrocarbons, hydrochloric acid, ferric chloride, seawater, tolulene, benzene vapor. Users: Chevron, Fina, Mobil, Shell, Arco, Amoco, Exxon, Suncor.

2.FUJIKIN：

• Coal-Fired Thermal Power Plants：Flue Gas Desulphurization Plants，Limestone slurry，Gypsum slurry，Fly ash slurry，Waste water，Coal powder.
• Pulp & Paper Mills：Green liquor，White liquor，Black liquor，Lime mud，Talc，
• Chemical Plants：Hydrogen fluoride，Phosphoric acid，Caustic soda.
• Metals & Mining：Alumina Refining，Caustic soda，Alumina powder.

• Steel Plants：Dry dust remover，Coal powder
• Refining：Oil Sands
• Petrochemical
• Water & Wastewater

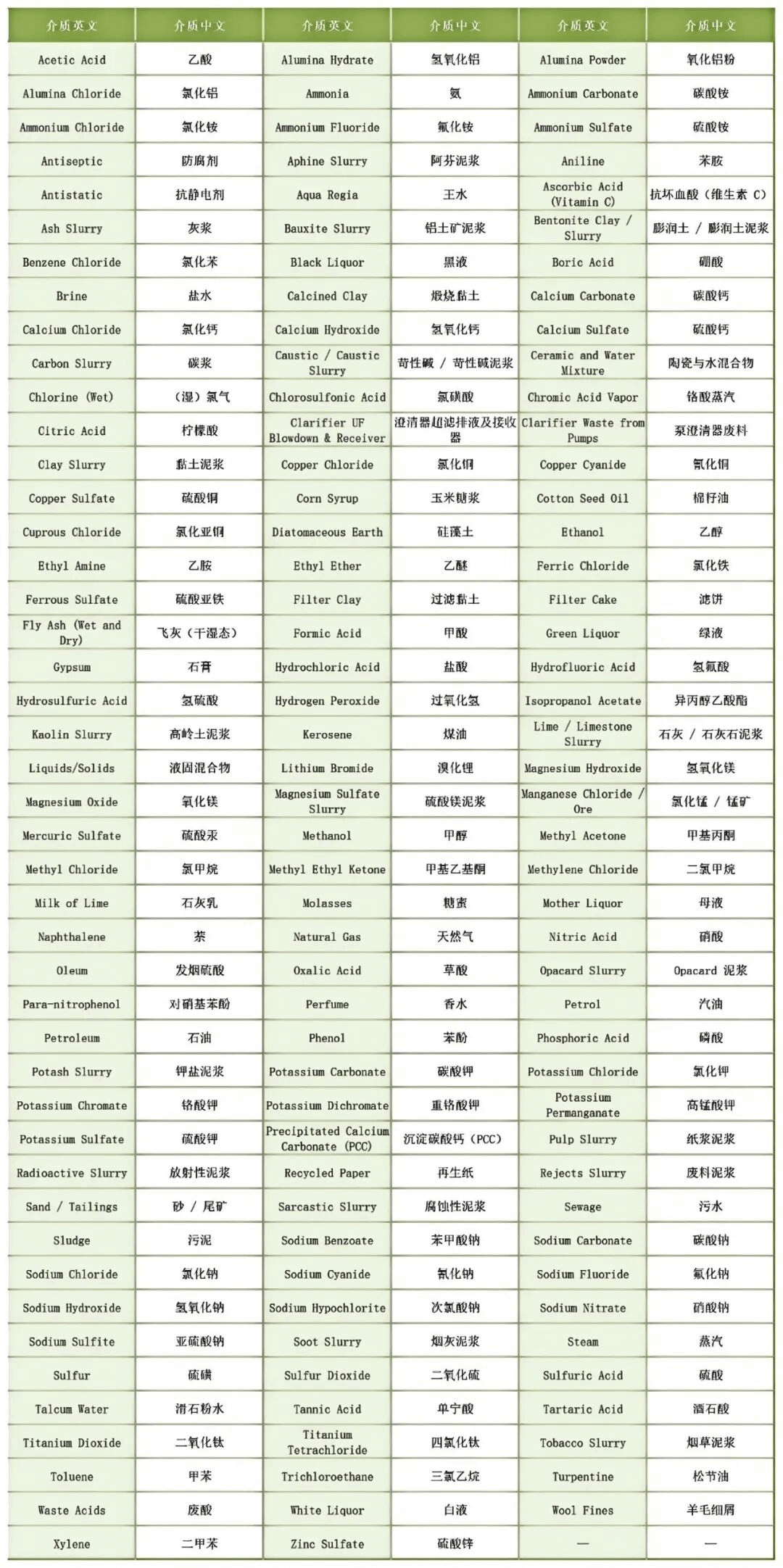

• Media Suitable for FUJIKIN Ceramic Ball Valves：

3.Cera System

As the technological market leader for ceramic lined industrial valves and pipeline components, we continually open up new areas of application together with our customers.

Our standard products are designed for use in extreme conditions. But we are also working closely with our customers to develop new solutions while relying on our vast knowledge and experience of applying engineered ceramics to critical service valves.

Cera System valves are used and trusted by well know companies from all over the world. Reference can be supplied as requested.

Our main markets and applications for process and chemical industry are:

• Power Plants: (FGD units, Limestone Slurry, Hydrated Lime Slurry, Gypsum Slurry, High Chlorides Water, fly-ash, ash, plaster, lime & lime slurry, filtrate water with solids...). Users.
• Waste Incinerators:(FGD, lime slurry, lime milk for the absorber，HCl scrubber water, HCl washing water...) .
• Steel Production:(coal powder injection,  converter desulphurisation of melt, lime, silica, MgO2, coke...). Users: THYSSEN - KRUPP, Germany; CSN, Brazil; SHANGAN Steel, China; SIDMAR, Belgium; ARCELOR, France; CORUS, UK; VOEST–ALPINA, Austria; OUTOKUMPU, Finland; LURGY METALLURGY, Germany; STEIN(EAF), Germany; DANIELI(EAF), Italy; ANDSK (EAF), Egypt; INCHEON(PCI), Korea; BAO Steel(EAF), China; CHONGQING Steel(EAF), China.

• Pulp & Paper: (Kaolin, Bentonite, Talkum,  Quartz, MgO2, CaCO2, other fillers, bleachers, pulp rejects, NaOH, green liquor...). Users: SMURFIT STONE,QC, Canada; SAPPI Ehingen, Germany; PERLEN PAPIER, China; KÜTTNER, Russian.
• Chemical Process Plants: (acids, metal slurry, bases, polymers, FeCl2, caustic, mixes...)Alternatives to PTFE / PFA lined valves when the media is abrasive；Alternatives to valve manufactured from special materials (e.g. Hastelloy, titanium, etc.). Users.
• Silicon: ( Conveying of silicon powder, Silicon conveyor silo expansion valve; Polysilicon:  Control of trichlorosilane (TCS), Conveying of Si3Cl4 ). Users: Wacker Chemie AG, Germany; GE–BAYER Silicones, Germany; Hemlock Semiconductor Inc, USA; MEMC Electronic Materials, Inc USA.
• Petrochemistry: (FCC cat cracker, Al2O3 powder, Catalyst container valve). Users: ELF OIL, UK Ltd.; SCANRAFF REFINING, SE; TOTALFINA ELF, Germany; HISMELT, Australia; JINDAL, India.
• Dye production: (Dosing of TiO2 suspension with sulphuric acid, Diluted acid preparation, TiO2 slurry, TiCl4... ). Users: HUNTSMAN – TIOXIDE (I, UK, ES); TRONOX (KMG) (D, USA, Australia, NL); DUPONT (USA).
• Mining: (Dosing of copper suspension with acid content, Conveying of copper concentrate, Ore conveying, ore dosing,...). Users: Xstrata Copper Chile S.A.

• Pneumatic Conveying: (sand, lime, glass,  cement, ore, gypsum, powders...). Users: Halberg-Guss GmbH.
• Fertiliser: (Ammonium Nitrate, Phosphoric  acids & solids). Users: Kemira GrowHow；FERTIBERIA S.A.；ABU QIR FERTILIZERS AND CHEMICALS INDUSTRIES COMPANY (SAE)；HYDRO AGRI, NL（YARA）.

4.Neles

APPLICATIONS

• lime mud control.
• kaolin, china-clay control.
• carbonate handling.
• gypsum handling.
• cement production.
• metal slurries.
• catalyst regeneration.

• desulphurization units.

5.FLOWSERVE Durco Ceramic Ball Valves

Recommended when nothing else will work in abrasive slurries, high temperature corrosives and services with large temperature fluctuations.

APPLICATIONS

• Metal and Mining: Mineral slurry transportation (copper ore/iron ore), steel pickling wastewater treatment, pulverized coal injection systems.
• Petrochemical: FCC (Fluid Catalytic Cracking) units, acidic oil and gas transportation, sulfur-containing wastewater treatment.
• Power (Thermal/Nuclear Power): Flue Gas Desulfurization (FGD) systems, limestone/gypsum slurry transportation, denitrification medium control.
• Chemical Industry: Transportation of highly corrosive media (e.g., hydrofluoric acid, phosphoric acid, titanium dioxide suspension), processing of particle-containing polymers.

• Oil and Gas: Acidic oil and gas well exploration (containing H₂S/CO₂), subsea oil and gas transportation systems.

6.FLOWSERVE NAF Control Valves

NAF-Ceramic is a ball valve all-lined with ceramic. It is primary intended for control but has a sealing class as for a shut-off valve.

Applications

NAF-Ceramic can be used both as control and shut-off valve for difficult applications with erosive and abrasive media.

The valve represents a concrete result of our product philosophy which is focused on functionality, high quality and low life cycle costs, and is based on concentrating our range to a limited number of valve types, but all of them suitable for a wide variety of applications.

7.KOWOV

KOWOV ceramic ball valves are often the most cost-effective valves for the most demanding service conditions.

We offer the industry’s most comprehensive portfolio of proven ceramic valve products—each rigorously validated through extensive real-world applications.

With our products serving virtually every industrial sectors, our application engineers have accumulated deep expertise in addressing a wide range of challenging operating conditions. Often, we can provide mature, ready-to-implement solutions even at the earliest stage of a customer’s inquiry. Our integrated system solutions enable a great economic benefits in many applications.

APPLICATIONS

• Power: Coal-fired power plants; waste-to-energy plants; thermal power companies; FGD Flue Gasdesulfurization ; AHDRS fly ash; ash removal and dust collection; SCR denitrification systems. IGCC Integrated Gasification Combined Cycle; Condensate Polishing Unit. Users: China Huaneng Group; China Datang Group; China Huadian Group; China Energy Investment Corporation; State Power Investment Corporation; China Resources Holdings; China Shenhua Energy; China National Development and Investment Corporation; PT. South Pacific Viscose (Indonesia)
• Steel Plant: PCI Pulverized Coal Injection; OXY Oxygen desulfurization; DRI Dry dust remover; EAF Electric Arc Furnace; converter molten iron desulfurization. Users: Jiangsu Shagang Group; Baowu Group; Formosa Ha Tinh Steel; Nanjing Iron and Steel Group; Jiangyin Xingcheng Special Steel; Qingdao Iron and Steel Holding Group; Jiangsu Yonggang Group; Tangshan Iron and Steel Group; Benxi Iron and Steel (Group); Maanshan Iron and Steel; Chongqing Iron and Steel Group; Baotou Iron and Steel (Group); Panzhihua Iron and Steel Group
• Coal Chemical Industry: Gasification; shift conversion; synthesis; coal washing; coking; coal cinder extraction; Steam with condensation; sulfur recovery. Users: China Energy Investment Corporation; Sinopec; China National Coal Group; CNOOC Group; Yitai Chemical; Shaanxi Coal and Chemical Industry Group; Yihua Group
• Silicon Chemical Industry: Polysilicon and silicone production; silicon powder conveying and venting; Silicon Powder; TCS，Si₃HCl3; Si₃Cl₄; reduction tail gas treatment; cold hydrogenation; slag slurry treatment; three wastes treatment; cyclone separators. Users: Tongwei; Daqo New Energy; Xinte Energy; GCL Group; East Hope Group; Hesheng Silicon Industry; Xinghuo Chemical; Dow Chemical; Shin-Etsu Momentive (Xin'an); Tangshan Sanyou Group

• Chlor-alkali Industry: Soda ash; caustic soda; chlor-alkali production; acetylene synthesis; PVC manufacturing; calcium carbide slag slurry handling; brine processing; salt sludge treatment; sulfuric acid, lime milk, hydrochloric acid and liquid chlorine conveyance. Users:China National Salt Industry Group; Sanyou Chemical; Junzheng Group; Shandong Haihua Group; Jintai Chlor-alkali
• Industrial Chemicals: PVA/PVB production; titanium dioxide manufacturing; alumina processing; catalyst production; MDI/TDI synthesis; PTA/AA manufacturing. Users: Wanhua Chemical Group; Hengli Group; Pangang Vanadium and Titanium Resources; Lomon Billions Group; Anhui Weiwei Group; Shandong Weiqiao Pioneering Group; Aluminum Corporation of China; Qingtongxia Aluminum; Jiaozuo Wanfang Aluminum; Qiya Aluminum Power; Huaze Aluminum and Power; East Hope Group; Changling Catalyst; Junggar Energy; Lunan Chemical Industry; Xinjiang Juli Industry
• Fine Chemical Industry: Chemical fertilizer production; pesticide manufacturing; phosphorus chemical processing; boron chemical production; Ammonium Nitrate; Dolomite Slurry; Users: Yuntianhua Group; Xinlianxin; Yongnong Technology
• Petrochemical: Waste liquid treatment; oil and gas extraction; fluid catalytic cracking (FCC); Alumina Catalyst; Ferric Chloride. Users: Sinopec Zhenhai Refining & Chemical; Zhejiang Petrochemical; Sinopec Luoyang Petrochemical

• New Energy: Biomass energy utilization; solar energy material production; hydrometallurgy of nickel and cobalt; lithium extraction from spodumene and salt lakes; production of ternary precursors and iron phosphate precursors; manufacturing of ternary cathode materials and lithium iron phosphate cathode materials. LFP, NCM/NCA, LCO, LMO; Lithium Spodumene Powder; Lithium Carbonate Slurry; Electrolyte.  Users: CATL; Huayou Cobalt; Ganfeng Lithium; Tianhua New Energy Materials; Shengxin Lithium Energy; Beijing Easpring Material Technology; Liqin Mining; COFCO Biochemical Energy; Meishan Shunying New Energy
• Mining and Metallurgy: Mining and mineral processing; casting; smelting; hydrometallurgy. Bauxite Slurry; Copper Concentrate; Sulfuric Acids (>96%) with ore-residues or other particles. Users: Shandong Gold Group; Yunnan Hualian Zinc and Indium; Liqin Nickel Industry (Halmahera); Vedanta Copper Smelter (India); Zhuzhou Smelter Group; Zijin Mining Group; Zhaojin Mining Industry; Hengbang Smelting; Luzhong Metallurgical Mining; Inner Mongolia Yindu Mining; Tongling Nonferrous Metals Group; Longqiao Mining; Inner Mongolia Abaga Banner Jindi Mining; Hebei Hua'ao Mining; Jiangxi Copper Corporation; Xinjiang Habahe County Ashele Copper; China Railway Baoji Bridge Group; GM Dongyue Powertrain
• Environmental Industry: Waste incineration; zero liquid discharge of wastewater; solid waste treatment; sulfur recovery. Corrosive fluids with solids in suspension; Sludge; Sodium Hypochlorite; Sodium Bisulfate; Ferric Chlorite. Users: Everbright Environmental Energy; TEDA Environmental Protection; Xidong Domestic Waste Power Plant; Changshou Chemical Industry; Sea Level Polymer Material; Yili Chemical; No.2 Ironmaking Plant of Tangshan Iron and Steel Group

• Other Industries: Abrasives and grinding tools; glass manufacturing; papermaking; resin products production; pharmaceutical manufacturing; cement production. Kaolin; Bentonite; Green Liquor; White Liquor; Quartz Sand.  Users: Jiangyin Haobo; Conch Cement; Gold Huasheng Paper; Asia Pulp & Paper; Jianhui Paper

Ⅱ. Core Challenges in the Application of Ceramic Ball Valves & Industry Solutions

Ceramic ball valves deliver exceptional wear and corrosion resistance, making them a highly viable alternative to traditional metal valves for demanding industrial operating conditions. Yet their broader adoption and scaling have been hindered by a host of factors—from limited R&D progress and inadequate market oversight to an underdeveloped standard framework—exposing systemic issues that have hampered the industry’s standardized growth. The emergence and evolution of these adoption barriers can be broken down in line with the industry’s developmental stages as follows:

1. Early Adoption: Foundational Strengths and Inherent Limitations

In the early days of ceramic ball valve promotion, manufacturers both domestic and international focused their R&D efforts on the demanding operating conditions where traditional metal valves were poorly suited. Leveraging in-depth on-site operational insights and a prudent approach to managing the performance thresholds of ceramic materials, these products—though not without minor flaws—effectively solved critical process challenges in specialized operating environments and delivered a marked extension in valve service life. Despite drawbacks such as premium pricing, complex installation requirements and stringent operational protocols, their irreplaceable value quickly earned market recognition, cementing an initial foothold in industrial applications. This early market acceptance laid the groundwork for subsequent expansion, yet the lingering product imperfections and adoption barriers foreshadowed challenges for the industry’s scaling efforts.

2. Misalignment Between Expanding Use Cases and Stagnant Technological R&D

As market demand grew and ceramic ball valves found new applications across more sectors, R&D into the adaptability of structural ceramic materials to diverse operating conditions failed to keep pace. Many manufacturers neglected targeted optimization in ceramic material selection, formula design, forming processes and sintering methods, leading to frequent component failures in newly adopted use cases. Volatile user experiences eroded market trust in turn, creating a core technical barrier to further expansion and pushing the industry’s adoption efforts from a phase of targeted breakthroughs into one of stalled scaling.

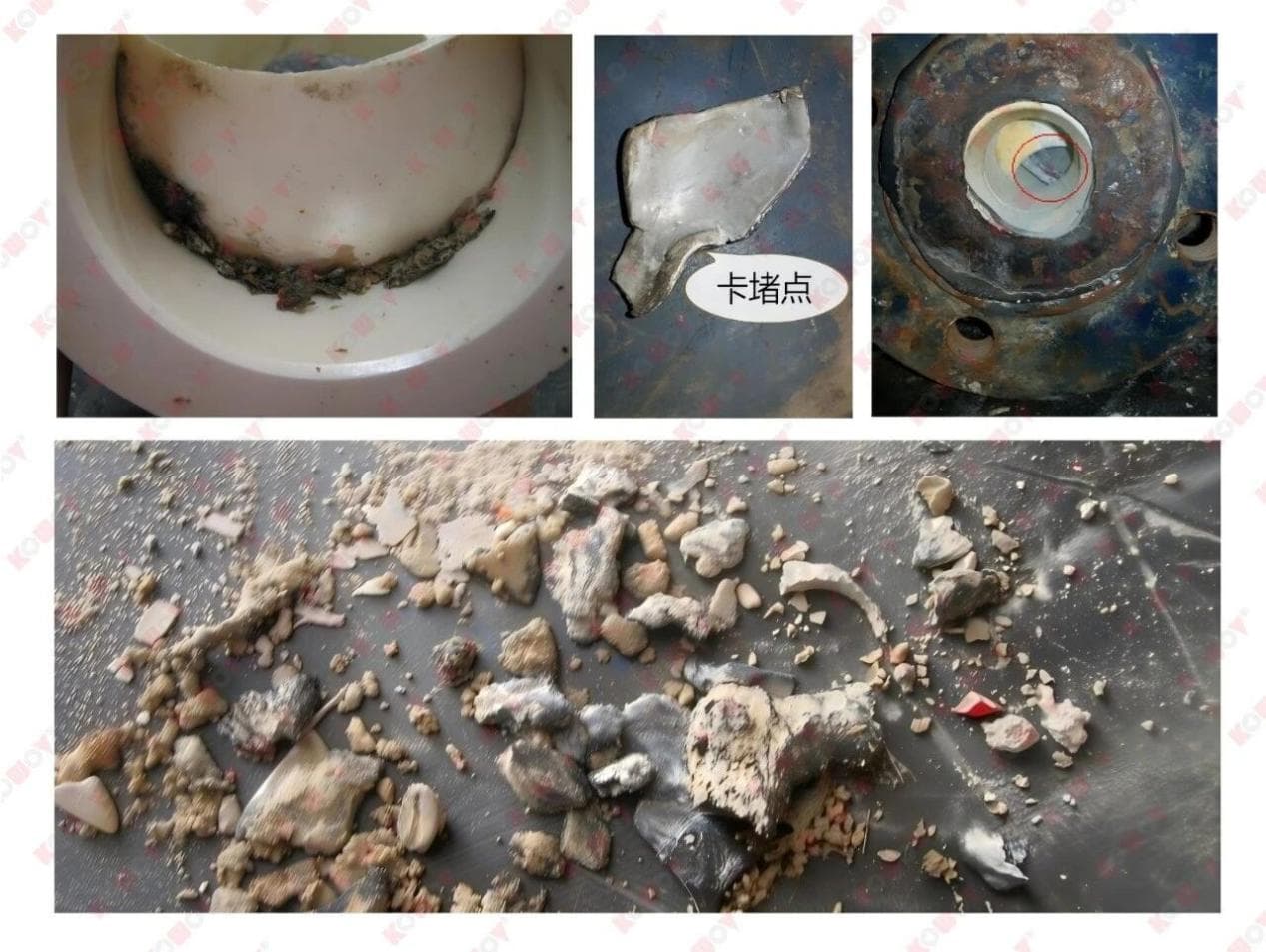

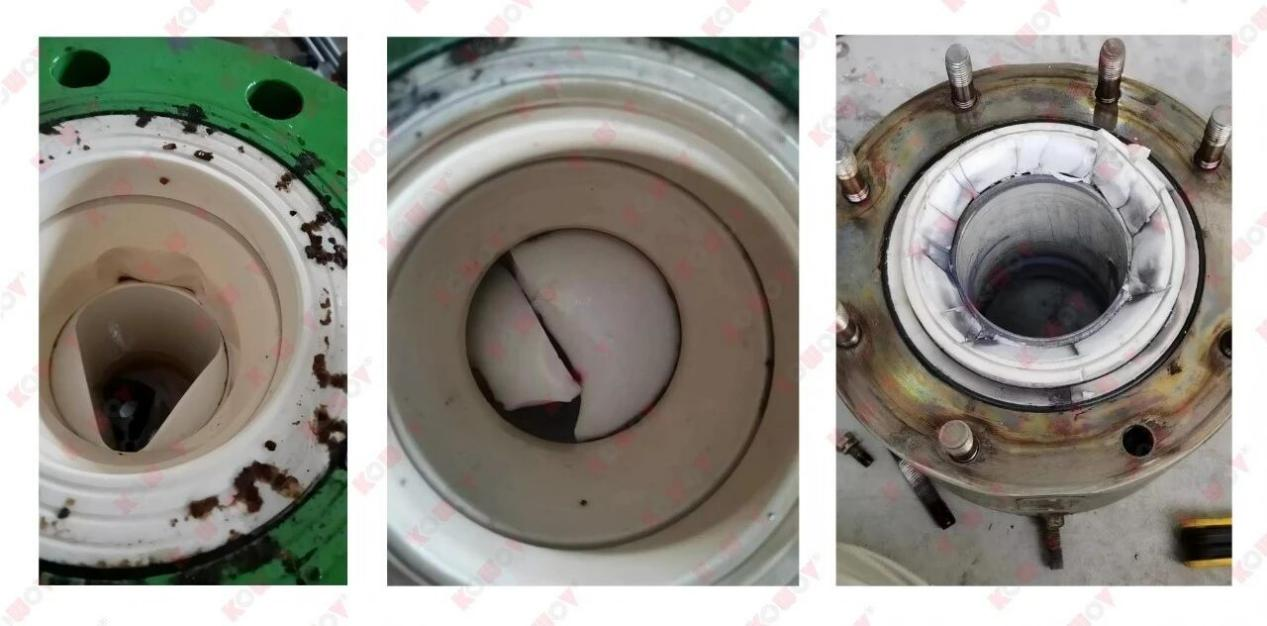

Compounding this issue, the rapid rush to expand ceramic ball valve applications left many manufacturers without a nuanced understanding of on-site operating conditions. The result was a proliferation of products that either lacked operational stability or featured excessive performance redundancy—both of which significantly compromised end-user experience.

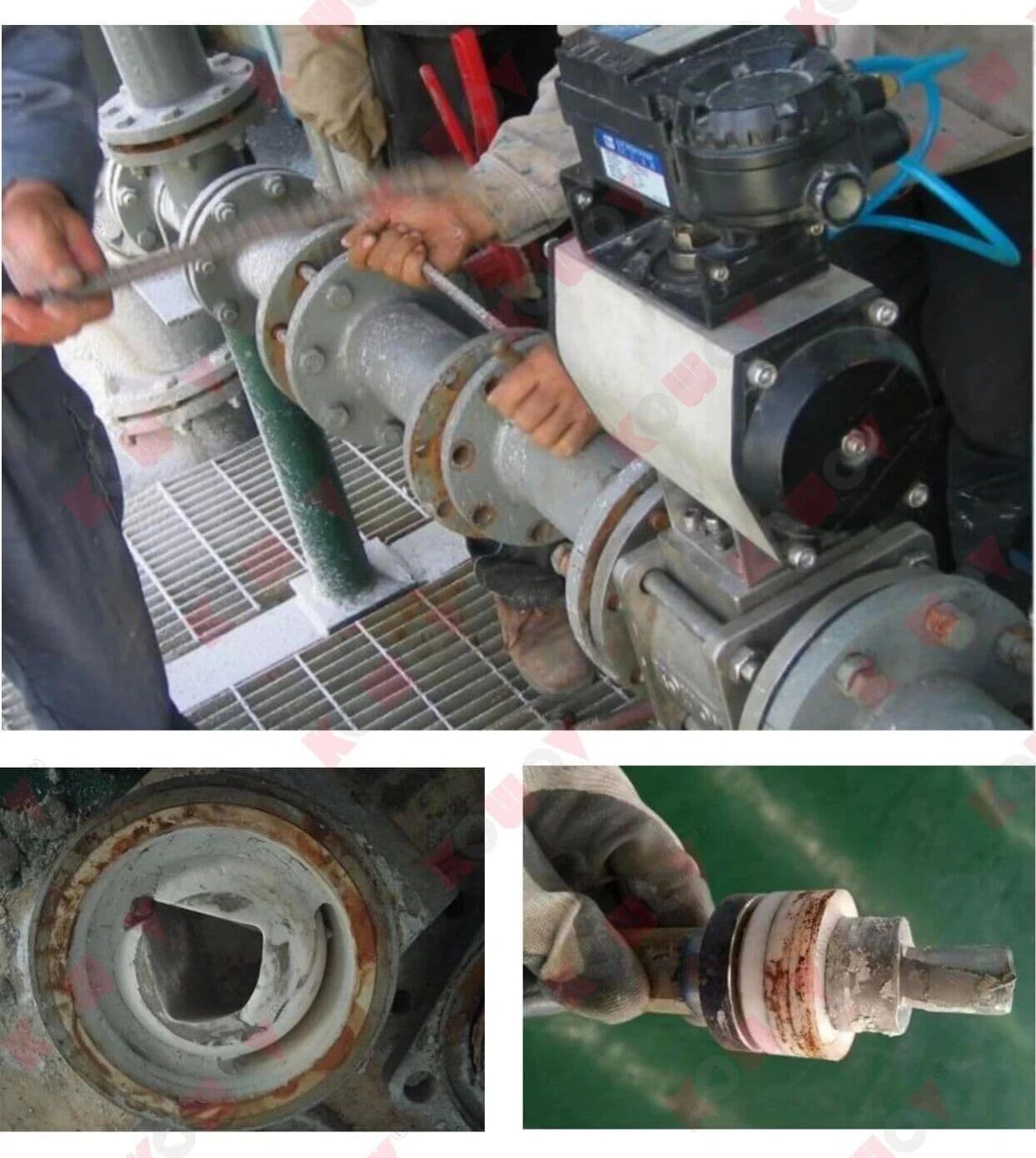

3. Perceptual and Operational Missteps with the Influx of Domestic Products

The mass entry of domestic ceramic ball valves into the market disrupted the existing landscape with their notable price advantages, but it also created new adoption hurdles. Lured by significant price differentials, some end users overlooked the fundamental material differences between ceramic and metal valves, operating the former with the same unrefined protocols used for traditional metal valves. Such non-standard operations—rooted in perceptual biases—spiked product failure rates and amplified negative market perceptions of ceramic ball valves. This created a vicious cycle: improper operation led to product failure, which in turn eroded market trust, delivering a secondary blow to the industry’s promotion efforts.

4. Quality Control Crises: Market Growth and the Influx of Small and Micro Enterprises

Following the 2010s, leading manufacturers achieved consistent, reliable ceramic ball valve performance across multiple sectors by enforcing strict controls over materials and production processes—fueling a market boom that attracted a flood of small and micro enterprises. Most of these new entrants lacked core technical expertise and proven know-how: they had no established technical reserves for the full ceramic production process, nor a clear understanding of the key performance indicators (e.g., material purity and particle size) that define ceramic quality, or the full-process testing methods needed to verify these metrics. The result was widespread inconsistency in product quality across the industry.

More critically, bulk procurement scenarios—characterized by elevated decision-making hierarchies and standardized bidding processes—saw a recurring trend of low-quality, low-price products winning contracts. The widespread use of inferior ceramic ball valves not only inflicted direct harm on end users but also triggered an industry-wide crisis of confidence in the technology itself. This significantly increased decision-making resistance to the bulk adoption of high-quality ceramic ball valves and constrained the overall upgrading of the industry.

5. A Fundamental Barrier: The Absence of Tailored Industry Standards

The lack of a specialized, tailored standard framework is the most fundamental constraint on the widespread adoption of ceramic ball valves. Currently, the industry has no exclusive core standards for these valves and is forced to rely on GB/T 12237, the national standard for steel ball valves used in petroleum, petrochemical and related industries. The only relevant targeted standards are JB/T 10529-2020 Technical Specifications for Ceramic Sealed Valves and JB/T 12797-2016 Technical Specifications for Valves Used in Coal Chemical Industry Plants, both of which suffer from critical limitations:

The former, initially drafted by Tianjin Shengkai in 2003 and implemented in 2005, is essentially a specialized standard for ceramic gate valves, with only minimal content addressing ceramic ball valves. An attempt by Jintai Meilin to supplement ceramic ball valve provisions during the 2017 revision was unsuccessful, constrained by the original standard’s framework.

The latter only outlines minimum physical performance indicators for ceramic materials—metrics derived solely from laboratory sample testing. Compounding this, current non-destructive testing technologies for ceramic ball valve components are limited, meaning these indicators cannot effectively validate the performance of finished products in real-world applications.

Furthermore, there are no industry standards whatsoever that specify the unique requirements for the selection, installation and operation of ceramic ball valves. This leaves end users without clear guidelines for application and manufacturers without a defined framework for production, creating an institutional barrier to broader adoption.

6. Establishing Standards: The Industry’s Path to Standardized Growth

To address the issues stemming from the lack of tailored standards and drive the standardized development of the ceramic ball valve industry, Jintai Meilin teamed up with the Hefei General Machinery Research Institute to take the lead in drafting the group standard T/CMES 20023—2025 Technical Requirements and Quality Classification for Ceramic Ball Valves in 2024. The initiative brought together design institutes, universities, end users and valve manufacturers across the chemical, metallurgical, light industry and other related sectors. Scheduled for release on December 25, 2025 and implementation on January 25, 2026, the standard sets a unified industry framework across four core dimensions:

Defining purity grades for ceramic raw materials to establish strict material quality controls at the source;

Classifying ceramic forming processes to ensure optimal alignment between production methods and operating condition requirements;

Standardizing sintering processes and full-process production inspection methods to guarantee consistent, controllable manufacturing quality;

Providing technical guidelines for selection principles, installation specifications, operational precautions and maintenance requirements to formalize the scientific application of ceramic ball valves.

Through these provisions, the standard enables precise matching between ceramic material grades and operating condition demands, and establishes a scientific quality classification system for ceramic ball valves. It delivers an authoritative reference for end users across all industries in selecting and applying ceramic ball valves, and addresses the core adoption challenges of market trust deficits and non-standard application practices.

With the implementation of this specialized standard, the ceramic ball valve industry is poised to shift from an experience-based approach to a standards-led paradigm. Guiding rational market selection through clear quality classification will rebuild and boost market confidence, ultimately paving the way for the large-scale, reliable deployment of high-performance ceramic valves in key sectors including energy, chemical engineering and metallurgy—while ensuring the long-term, safe and stable operation of industrial equipment.
