I. The Birth of Ceramic Ball Valves
With the continuous advancement of industrial technology, traditional metal Ball Valves have gradually exposed inherent limitations when operating underHigh Temperature, strong corrosion, and severe abrasion conditions. Problems such as rapid corrosion, accelerated wear, and unstable sealing performance have made them increasingly unable to meet the stringent fluid control requirements of industries such as chemical processing, metallurgy, and power generation.
This long-standing industrial challenge gave rise to a new generation of valves based on advanced ceramic materials — the Ceramic Ball Valve.
1. Early Exploration and Technological Germination (1940s–1960s)
The Industrial Revolution accelerated the development of coal, chemical, and metallurgical industries, driving a sharp increase in demand for reliable fluid control. However, conventional metal valves frequently suffered from perforation, leakage, and rapid failure when handling media containing solid particles or exposed to strong acids and alkalis. High maintenance costs and safety risks became unavoidable issues.
Due to their high hardness, high strength, excellent wear resistance, and outstanding chemical stability, ceramic materials were widely used in military and aerospace applications after World War II. With ongoing technological progress, these materials gradually expanded into civilian industrial applications, laying the material foundation for the development of ceramic ball valves.
In the 1940s, engineers in Germany and the United States were the first to attempt using Alumina Ceramics for valve trim components, marking the beginning of ceramiC Valve exploration. However, limitations in processing technology at the time resulted in non-uniform ceramic density and insufficient toughness. Ceramic components were prone to cracking under fluid impact, and reliable sealing between ceramic parts and metal valve seats could not be achieved. Severe leakage issues caused early research efforts to stall.
By the 1960s, breakthroughs in materials science significantly changed this situation. Isostatic pressing technology enabled more uniform ceramic density, while high-temperature sintering increased hardness to above HRC 75. The successful development of zirconia and silicon nitride ceramics dramatically improved toughness, breaking the long-held perception that ceramics were inherently brittle.
At the same time, Japanese companies integrated precision ceramic machining technologies with ball valve structural design, solving critical issues related to ball positioning accuracy and sealing compensation. These advances laid the groundwork for the industrial application of Ceramic Ball Valves.
2. Commercialization and Technical Validation (1970s–1980s)
In January 1975, Japan’s Fujikin Co., Ltd. invented the first plug-type ceramic valve, manufactured from 99.5% alumina ceramic. This product became one of the earliest representative achievements in ceramic valve technology. By 1981, Fujikin achieved serial production, and in the following year the product won awards in both Japan and the United States. It was successfully applied in the semiconductor industry, where ultra-high purity and zero metal ion contamination were essential (note: this product was a ceramic globe-type valve, which requires relatively lower ceramic toughness).
It should be noted that this valve belonged to a specialized valve category, often described in literature as a single-seated valve or precision needle valve, with relatively modest toughness requirements. The true ceramic ball valve, which demands much higher flexural strength of ceramic materials, is generally recognized to have emerged later. According to available records, Nil-Cor (USA) documented the world’s “First Ceramic-lined Ball Valve” in 1980, with the earliest confirmed industrial applications appearing around 1985.
By the late 1980s, European engineers recognized the exceptional corrosion resistance and hardness of engineering ceramics such as alumina (Al₂O₃) and zirconia (ZrO₂), making them particularly suitable for heavy-duty applications in chemical processing, metallurgy, and thermal power plants. Through transformation toughening technology in zirconia, the first generation of toughened ceramics emerged, fundamentally solving the strength limitations of ceramic balls.
Meanwhile, advanced grinding and polishing techniques enabled mirror-level surface finish and perfect sphericity between ceramic balls and valve seats. At this stage, the technical feasibility of ceramic ball valves was fully validated, and the conditions for industrialization were essentially in place.
II. The Development of Ceramic Ball Valves
1. Key Technological Breakthroughs (1990s)

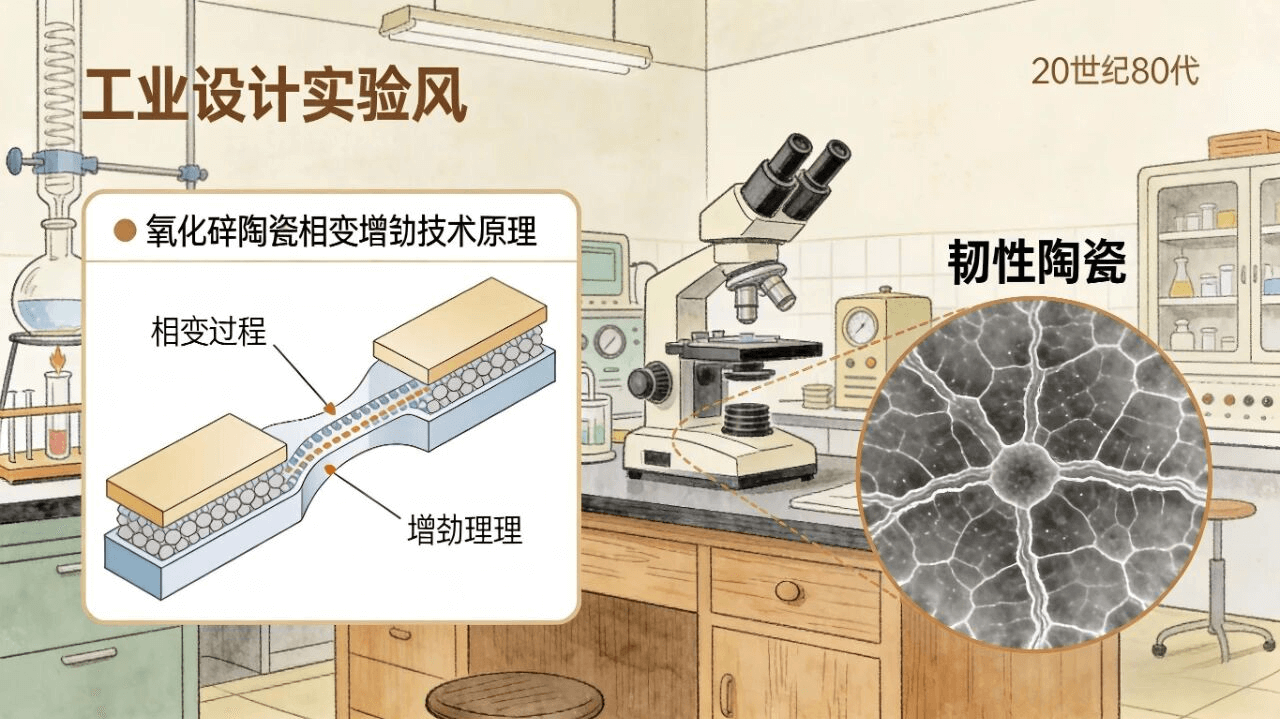

To address the inherent brittleness of ceramics, researchers introduced special additives, optimized sintering processes, and nanotechnology, significantly improving toughness and mechanical strength. Ceramic microstructures became more uniform, internal defects were reduced, and overall reliability increased substantially.
In manufacturing, the adoption of CNC precision grinding enabled accurate control of ball and seat dimensions as well as surface roughness. Thanks to the self-lubricating properties of ceramics, sealing pairs achieved exceptionally tight contact. Leakage rates could be controlled below 10⁻⁶ Pa·m³/s, far superior to conventional metal valves.
2. Global Industrialization (Late 1980s–Early 1990s)
This period marked a critical turning point as ceramic ball valves transitioned from laboratory research to large-scale industrial application. Upgrading heavy industries worldwide urgently required valves capable of resisting corrosion and abrasion, and ceramics quickly gained recognition for their comprehensive performance advantages.
Material breakthroughs:
Sumitomo Chemical (Japan) significantly enhanced toughness by developing yttria-stabilized zirconia, while Corning (USA) optimized powder milling and forming processes, achieving valve component dimensional accuracy of ±0.01 mm.
Service life improvement:
The lifespan of ceramic sealing pairs was extended by 5–10 times compared with metal components, dramatically reducing maintenance costs.
Standardization:
In 1992, the American Petroleum Institute (API) incorporated ceramic sealing pair requirements into API 6D – Pipeline Valves, promoting industry standardization.
Regional development patterns:
United States:
Early industrial adoption occurred in 1985, when Nil-Cor applied ceramic ball valves at Chemlink Petroleum Inc. (Oklahoma) to control highly corrosive acidic liquids, successfully resolving frequent failures of fiberglass valves.
In 1988, Durco collaborated with ceramic research institutes to launch ceramic-sealed ball valves for chemical applications. These valves were successfully used in Dow Chemical’s Freeport plant hydrochloric acid system, extending service life from three months to over two years.
In 1990, Durco introduced abrasion-resistant ceramic ball valves for mining tailings, increasing service life from one month to 18 months in a Colorado copper mine.
Europe:
Focused on customized solutions for severe operating conditions. In 1987, Neles (Finland) developed ceramic ball valves using Mg-PSZ zirconia to solve frequent leakage in pulp digester relief valves, extending valve life from 3–6 months to 2–5 years.
In 1996, Cera-System (Germany) applied ceramic ball valves in blast furnace PCI (pulverized coal injection) systems, extending service life nearly sixfold and reducing maintenance frequency by over 60%.
Japan:
Leveraging its advanced ceramics industry, Japan followed an integrated materials–valve development model. In 1987, Fujikin introduced zirconia ceramic ball valves, achieving zero contamination sealing in semiconductor ultra-pure water systems and rapidly dominating the high-end electronic chemical market.
China:
In China, the development of ceramic ball valves was characterized by pragmatic ideals and independent R&D.
In 1991, Dr. Li Gang, a postdoctoral researcher from Tianjin University, joined the CSG Group (China Southern Glass Holding), bringing with him the concept and manufacturing technology of zirconia ceramic ball valves. To support this initiative, Shenzhen CSG Structural Ceramics Co., Ltd. was established, with Li Gang appointed as its first General Manager.
With the successful industrialization of zirconia ceramics at CSG Structural Ceramics, the company gradually became known as the “Huangpu Military Academy” of China’s zirconia ceramics industry, nurturing a generation of ceramic materials and valve engineering talent.

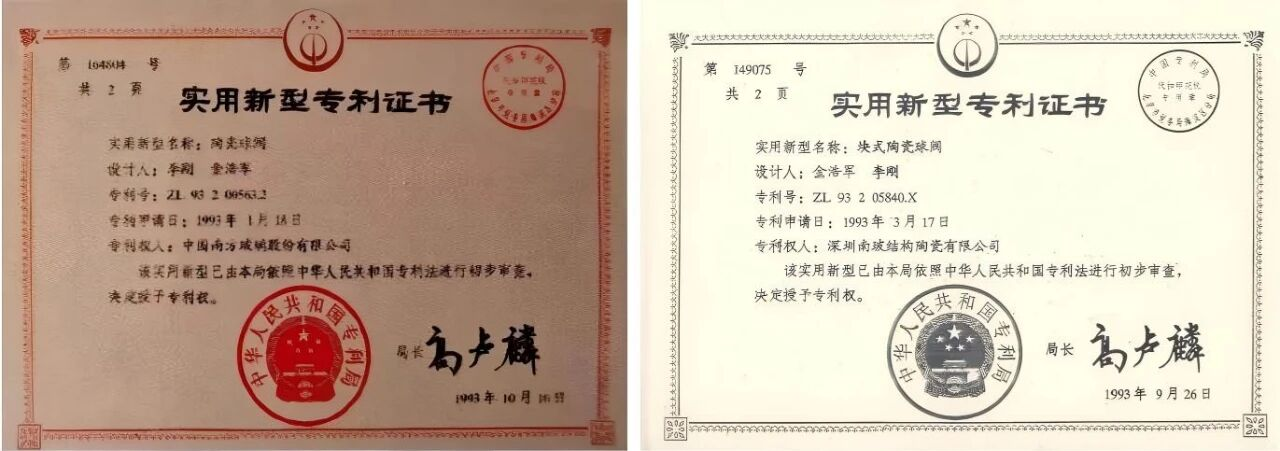

In June 1992, Mr. Jin Haojun joined CSG Structural Ceramics as a product engineer. By September of the same year, he successfully designed and developed China’s first ceramic ball valve. In 1993, the product passed national testing and was successfully applied in the chlor-alkali and textile dyeing industries, marking the official birth of domestically produced ceramic ball valves in China.
During this stage, the deep integration of “materials innovation” and “equipment upgrading” not only addressed long-standing challenges faced by industrial valves but also laid the technical, standardization, and market foundations for the large-scale global development of ceramic valves in the 21st century.
3. The Rise of Chinese Strength
(Late 20th Century – 2010s)
At this point, the global center of technology and market demand for ceramic ball valves began shifting from Europe, the United States, and Japan toward China. This transition was not a simple transfer of manufacturing capacity, but rather a transformation driven by continuous independent innovation by Chinese enterprises, enabling them to evolve from followers into pioneers across multiple application fields.
In 1993, following the successful application of China’s first general-purpose zirconia ceramic ball valve—developed by Shenzhen CSG—in chlor-alkali projects at Baling Petrochemical and Qilu Petrochemical, the product was granted a ceramic ball valve patent.

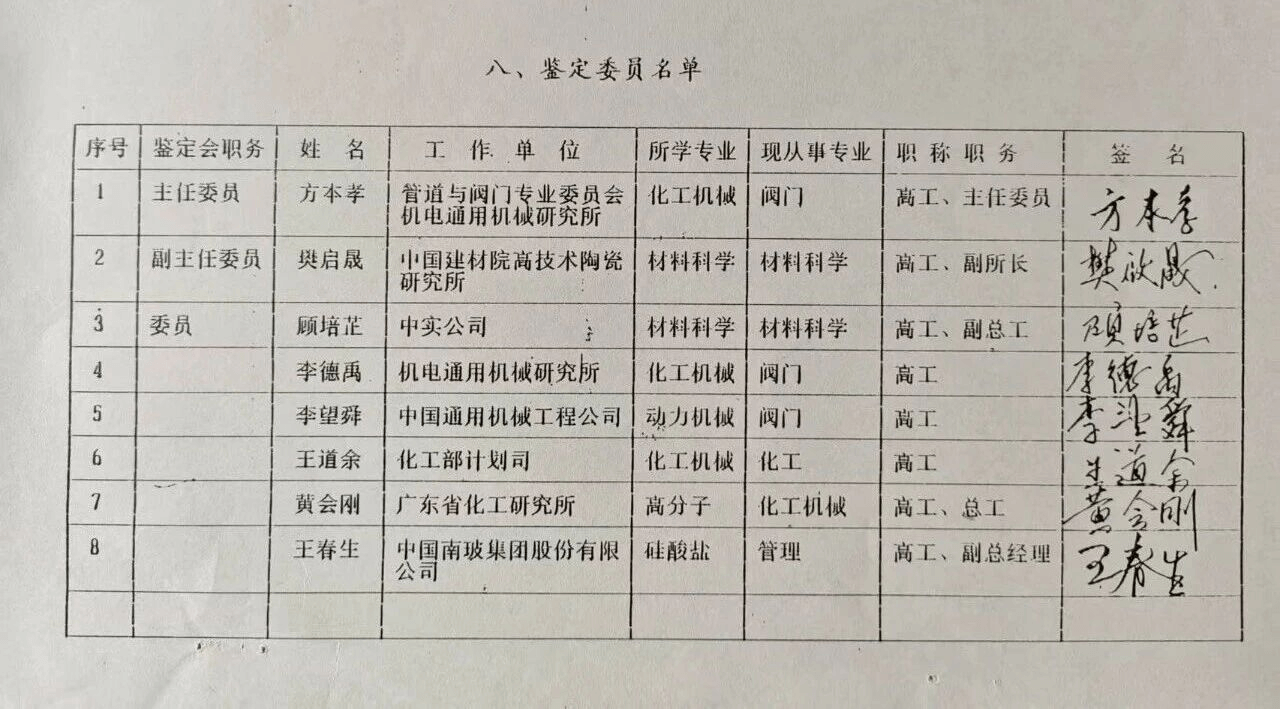

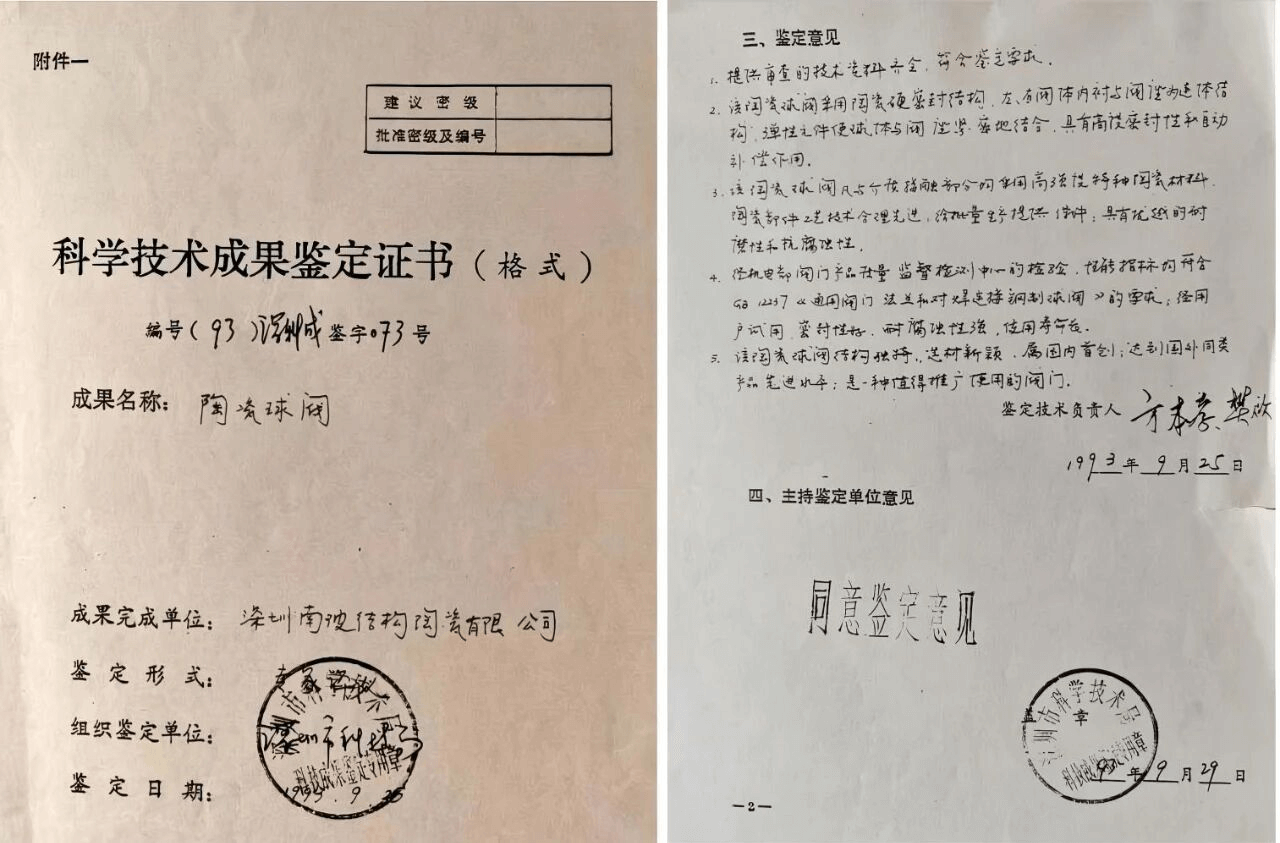

In September 1993, a scientific and technological achievement evaluation organized by the Shenzhen Municipal Science and Technology Bureau, involving renowned domestic valve and materials experts, unanimously concluded that the ceramic ball valve was “a domestic first, reaching the advanced level of similar international products, and a valve worthy of widespread promotion.”
In October 1993, following the successful first industrial application, Shenzhen CSG rapidly launched serial design and mass production, while simultaneously accelerating market promotion.

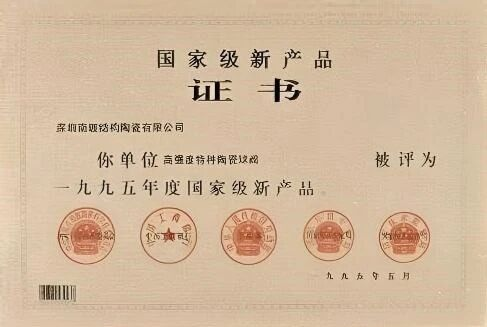

In May 1995, ceramic ball valves were jointly recognized as a “National New Product of 1995” by the State Science and Technology Commission, Industrial and Commercial Bank of China, Ministry of Labor, State Administration of Foreign Experts Affairs, and the Bureau of Technical Supervision.
CSG’s exploration and practice during the 1990s not only overcame early challenges in materials and manufacturing, but also sowed the seeds for China’s ceramic valve industry, proving the feasibility of domestic substitution and independent development.
Meanwhile, Mr. Wang Chen, an engineer at Tianjin Dagang Power Plant, observed that valves used in ash and slag removal systems typically lasted only 4–6 months due to severe wear. To address this issue, he founded Shengkai Valve Co., Ltd. in June 1994, personally leading the development of ceramic gate valves specifically designed for power generation, metallurgy, and chemical industries operating under extreme wear conditions.
Between 1999 and 2002, Shengkai’s R&D achievements were recognized as National Key New Products for four consecutive years, with multiple projects included in China’s Torch Program and “863” High-Tech Program. The company obtained DNV ISO 9001 certification in 2000 and was recognized as a National High-Tech Enterprise in 2001.
Tianjin Shengkai is widely regarded as the pioneer of true ceramic gate valves and one of the earliest comprehensive ceramic valve manufacturers in China, as well as the first to apply alumina ceramics to gate valves. Its products extended service life by 10–20 times compared with conventional metal valves, fundamentally solving long-standing wear problems in industrial applications. After being listed on NASDAQ in 2010, the company began manufacturing ceramic ball valves.
In November 1995, Mr. Zhang Zhongqiao from Wenzhou founded Wenzhou Zhongli Valve Co., Ltd., entering ceramic ball valve development by sourcing ceramic structural components from CSG. The company initially focused on highly corrosive chemical applications, accumulating valuable experience in replacing expensive noble-metal valves with ceramic alternatives.
In 1996, Fuxin Chemical Plant became the first to comprehensively adopt Shenzhen CSG ceramic ball valves in a new project, representing the largest ceramic ball valve application case of the 1990s in China.
In June 1998, Mr. Jin Haojun, formerly a core engineer at CSG, founded Yantai Jintai Meilin, carrying forward the development of domestically produced ceramic ball valves. By optimizing product structure and improving universality, he successfully expanded application areas from flue gas desulfurization, blast furnace pulverized coal injection (PCI), and hot metal pretreatment to coal chemical, silicon chemical, salt chemical, fine chemicals, metallurgy, and lithium battery industries.
In this article, we have reviewed the journey of ceramic ball valves from global technological emergence to rooted development and early growth in China.
In the next installment, we will focus on how Chinese ceramic ball valves, through sustained technological breakthroughs and deep market engagement, achieved leapfrogging progress and global competitiveness in the 21st-century industrial wave.
