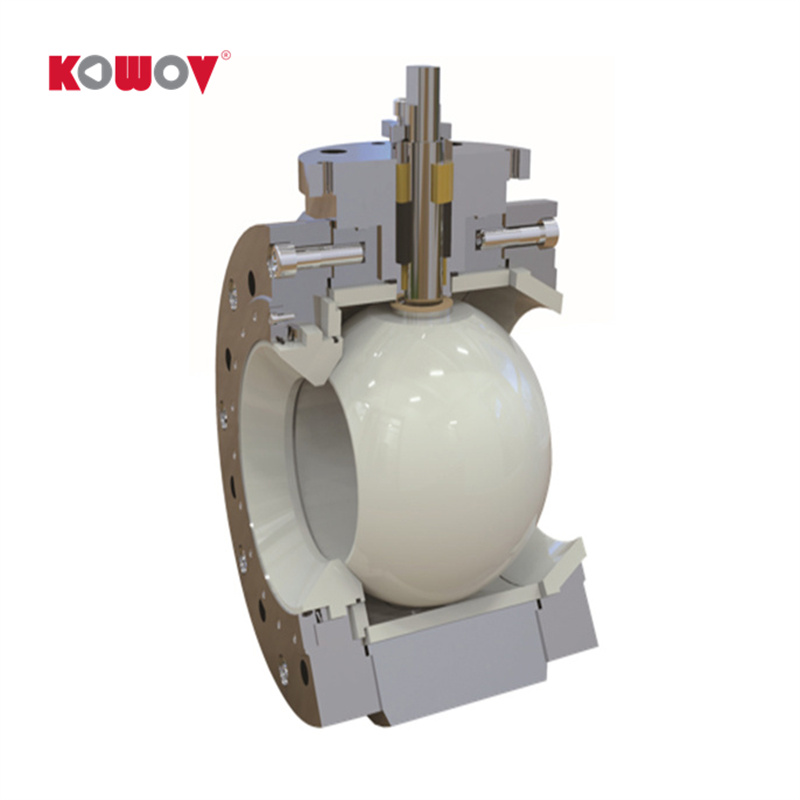

FCCV6 Single Seat Ceramic Ball Valve
Structural characteristics and advantages
- ● No-cavity design prevents clogging, buildup, and scaling, ensuring smooth flow and reliable shut-off.● Fixed ball design delivers lower operating torque and stable control, even with dense slurries.● High sealing level up to ANSI Class VI, guaranteeing tight shut-off and leak-free performance.● Scraper-type valve seat cleans the sealing surfaces automatically during every operation, preventing crystallization and scaling.● Blowout-proof stem design enhances operational safety in critical environments.● Automatic packing compensation structure maintains sealing force over time, significantly extending service life.The single-seat ceramic ball valve is designed for isolation and flow regulation of various slurries, gas-solid particulate media, and gas-solid-liquid three-phase media. It is especially suitable for highly viscous, crystallizing, or scaling slurries and mineral slurries, providing excellent control performance and ensuring long-term stable operation of the system.
Main Technical Parameters
| Nominal diameter | Exterior Size | GB PN10 Flange Dia. | HG PN10 Flange Dia. | Weight (Kg) | ||||||||||||||
| Inch | mm | dn | L | W | H | D1 | D2 | D3 | N-M | T | f | D1 | D2 | D3 | N-M | T | f | |
| 1/2" | 15 | 15 | 108 | 166 | 94 | 45 | 65 | 95 | 4-M12 | 14 | 2 | 45 | 65 | 95 | 4-M12 | 14 | 2 | 4.5 |
| 3/4" | 20 | 15 | 117 | 166 | 94 | 58 | 75 | 105 | 4-M12 | 16 | 2 | 58 | 75 | 105 | 4-M12 | 16 | 2 | 6 |
| 1" | 25 | 20 | 127 | 166 | 97 | 68 | 85 | 115 | 4-M12 | 16 | 2 | 68 | 85 | 115 | 4-M12 | 16 | 2 | 7 |
| 1 1/4" | 32 | 25 | 140 | 166 | 104 | 78 | 100 | 140 | 4-M16 | 16 | 2 | 78 | 100 | 140 | 4-M16 | 16 | 2 | 15 |
| 1 1/2" | 40 | 32 | 165 | 237 | 125 | 88 | 110 | 150 | 4-M16 | 16 | 3 | 88 | 110 | 150 | 4-M16 | 16 | 3 | 23 |
| 2" | 50 | 40 | 178 | 237 | 134 | 102 | 125 | 165 | 4-M16 | 18 | 3 | 102 | 125 | 165 | 4-M16 | 18 | 3 | 32 |
| 2 1/2" | 65 | 50 | 190 | 237 | 145 | 122 | 145 | 185 | 8-M16 | 19 | 3 | 122 | 145 | 185 | 8-M16 | 19 | 3 | 39 |
| 3" | 80 | 65 | 203 | 270 | 169 | 138 | 160 | 200 | 8-M16 | 21 | 3 | 138 | 160 | 200 | 8-M16 | 21 | 3 | 45 |
| 4" | 100 | 80 | 229 | 191 | 158 | 180 | 220 | 8-M16 | 22.3 | 3 | 158 | 180 | 220 | 8-M16 | 22.3 | 3 | 59 | |
| 5" | 125 | 100 | 254 | 407 | 188 | 210 | 250 | 8-M16 | 23 | 3 | 188 | 210 | 250 | 8-M16 | 23 | 3 | 69.5 | |
| 6" | 150 | 100 | 267 | 407 | 212 | 240 | 285 | 8-M20 | 26 | 3 | 212 | 240 | 285 | 8-M20 | 26 | 3 | 90 | |
| 8" | 200 | 150 | 419 292 | 520 248 | 268 | 295 | 340 360 | 8-φ22 8-M20 | 22 33 | 2 3 | 268 262 | 295 290 | 340 360 | 8-φ22 8-M20 | 22 33 | 2 3 | 200 | |
| 10" | 250 | 200 | 457 | 580 | 320 | 350 | 395 | 12-M20 | 24 | 2 | 320 | 350 | 395 | 12-M20 | 24 | 2 | 290 | |
| Item | Y-ZrO Y-TZP | Mg-ZrO₂ M-PSZ | 90 Al₂O₃ | 95 Al₂O₃ | 99 Al₂O₃ | Si₃N₄ | SiC | Common ceramics | Carbide alloy | 45# Steel |
|
Density g/cm³ |
6.0~6.05 | 5.72~5.74 | 3.45~3.55 | 3.6~3.75 | 3.9~3.95 | 3.2~3.33 | 3.15~3.25 | 3.0~3.5 | 14~18 | 7.8 |
|
Hardness HRA/C |
87 | 85 | 90 | 90 | 92 | 92 | 94 | 50~60 | 70 | 36 |
|
Flexural Strength MPa |
1150 | 900 | 350 | 370 | 450 | 1200 | 470 | 20~50 | 2000 | 804 |
|
Fracture Toughness (KIC) MPa√m |
10~12 | 13~15 | 3.4 | 3.6 | 4.5 | 7 | 4 | -- | 20 | 101 |
|
Compressive Strength MPa |
2000 | 1800 | 1700 | 2000 | 2200 | 2800 | -- | -- | 4000 | 2000 |
|
Thermal Shock Resistance °C |
87 | 110 | -- | -- | 50 | 200 | 75 | -- | 500 | 500 |
|
Thermal Expansion Coefficient ×10⁻⁶/°C |
9.6 | 10 | 7.6 | 7.8 | 8.3 | 3.4 | 4 | -- | 7 | 12 |
|
Modulus of Elasticity GPa |
200 | 200 | 310 | 330 | 350 | 300 | 400 | -- | 600 | -- |
|
Crushing Load KN (Φ6mm) |
15 | 10 | 3.5 | 3.6 | 4 | 18 | 3.5 | -- | -- | -- |
|
Using Temperature °C |
<160 | <1000 | <1200 | <1250 | <1500 | <1500 | <1500 | -- | -- | <560 |
|
Water Absorption |
0 | 0 | 0.02% | 0.01% | 0.00% | 0 | 0.50% | 5~10% | -- | -- |
|
Corrosion Prevention |
Good | Good | Good | Good | Good | Good | Good | Flooey | Good | Flooey |
*Data sources: test results or issued original documents.
ANTI-CORROSIVE PERFORMANCE REFERENCE TABLE
| Media | Temperature | ZrO₂ | 99.9% Al₂O₃ | SiC | Si₃N₄ | Graphite | PTFE | Fluororubber | SS304 | SS316 | HC |
| 20% HCL | 60°C | A | A | A | B | A | A | A | C | C | B |
| 20% HCL | 95°C | A | A | A | C | A | A | A | -- | -- | C |
| 90% H₂SO₄ | 60°C | A | A | A | A | A | A | A | C | C | B |
| 90% H₂SO₄ | 95°C | A | A | A | B | A | A | A | C | C | C |
| 60% H₃PO₄ | 60°C | A | A | A | C | A | A | A | C | C | A |
| 60% H₃PO₄ | 95°C | A | A | A | C | A | A | A | C | C | A |
| 10% HF | 60°C | C | B | A | A | A | A | A | C | C | B |
| 46% HF | 95°C | C | C | A | C | A | A | A | -- | -- | C |
| 60% HNO₃ | 60°C | A | A | A | C | B | A | A | A | A | C |
| 60% HNO₃ | 95°C | A | B | A | C | B | A | A | B | B | C |
| 30% NaOH | 60°C | A | B | A | B | A | A | A | A | A | A |
| 30% NaOH | 95°C | B | B | A | C | A | A | A | A | B | A |
A ≤ 0.1mmg/cm²/day: Can be ignored or has no corrosion, recommended for use.
B = 0.1~0.3mmg/cm²/day: Slight or very minor corrosion, use with caution.
C ≥ 0.3mmg/cm²/day: Significant corrosion, not recommended for use.
-- : Intense corrosion, to the extent that measurement is not possible.
Flow Characteristic Sheet of Ceramic Ball Valve
| Core Specifications | O-type ball core | V60° ball core | V45° ball core | V30° ball core |
| DN15 | 10 | 7 | 4 | 3 |
| DN20 | 18.2 | 12 | 8 | 5 |
| DN25 | 29 | 18 | 12 | 8 |
| DN32 | 47 | 30 | 20 | 13 |
| DN40 | 73 | 46 | 31 | 21 |
| DN50 | 114 | 72 | 48 | 32 |
| DN65 | 181 | 115 | 76 | 51 |
| DN80 | 292 | 185 | 123 | 82 |
| DN100 | 456 | 289 | 192 | 128 |
| DN125 | 712 | 452 | 300 | 201 |
| DN150 | 1025 | 650 | 432 | 289 |
| DN200 | 1822 | 1156 | 769 | 514 |
Typical Applications
- ● Titanium Dioxide (TiO₂) Industry:o Acidic slurries in the sulfate process for TiO₂ production.o TiCl₄ slurry and sludge in the chloride process.o Chlorine with biochemical substances and TiO₂ powder.● Salt Chemical Industry:o Salt sludge, caustic mud, carbide residue slurry, waste sludge, sand-removed ammonia wastewater.● Petrochemical Industry:o Molecular sieve lines in catalyst production units.o Fluidized catalytic cracking units (Al₂O₃ powders).● Mining & Mineral Processing:o Transport and blending of copper concentrates; safety valves for copper transport bins.● Dye Manufacturing:o TiO₂-containing solutions at specific concentrations, sulfuric acid solutions, and diluted acid solutions.
Other Application Fields
- ● Mining & Mineral Processing: Abrasive ore slurries, concentrate slurries, and tailings.● Hydrometallurgy: Handling of acid and alkaline slurries, leaching solutions.● Environmental Protection: Flue gas desulfurization (FGD) systems, gypsum slurry.● Steelmaking & Smelting: Slag slurry adjustment and regulation of high-wear media.With its advanced ceramic materials and optimized design, the FCCV6 provides outstanding wear resistance, corrosion resistance, and sealing reliability, making it the preferred choice for slurry control in severe industrial environments.
