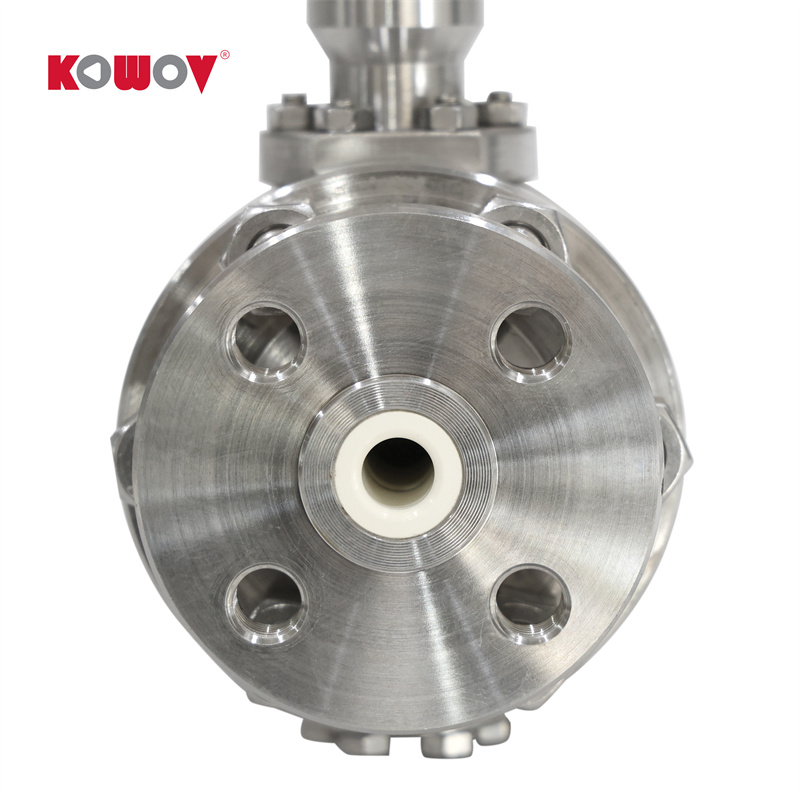

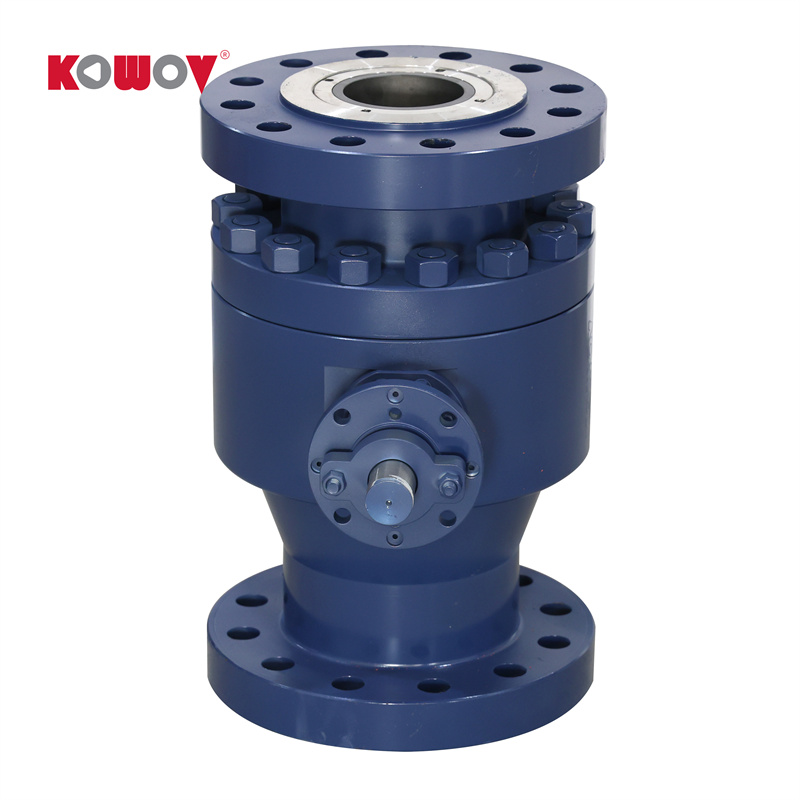

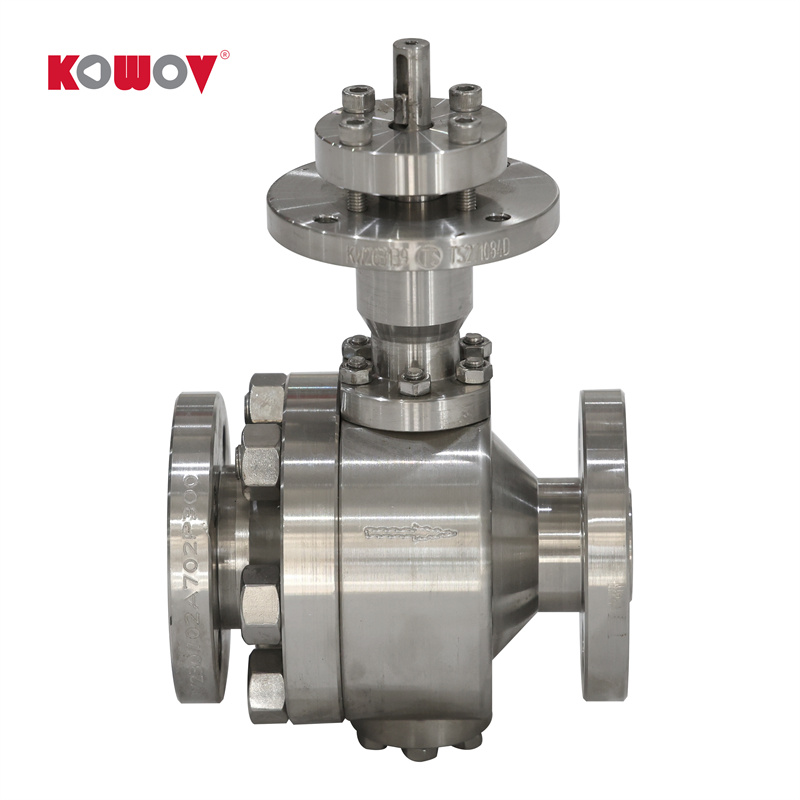

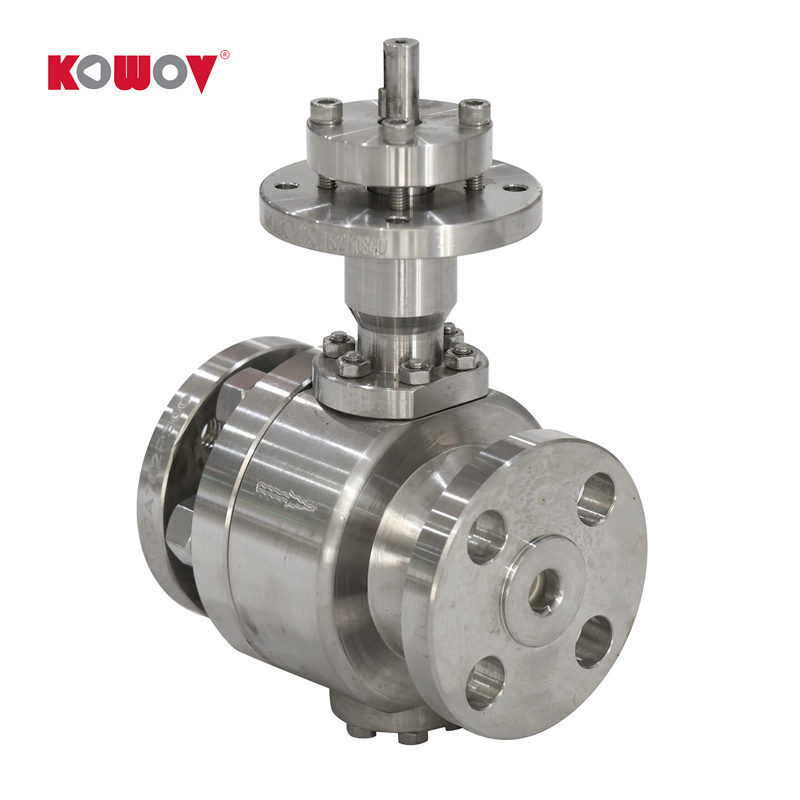

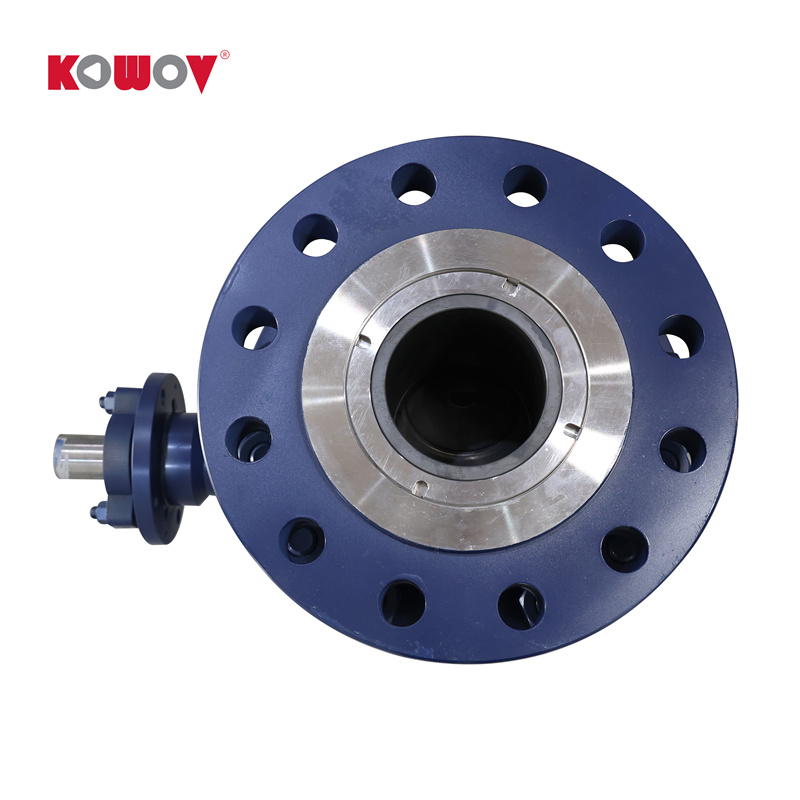

FCCV5 High Temperature & High Pressure Ceramic Ball Valve
Structural characteristics and advantages
- ● Extra-large ceramic ball provides double the strength of conventional designs, enhancing reliability under high stress.● Scraper-type valve seat with broad sealing surface ensures consistent, long-lasting tightness even with abrasive slurries.● All hard-sealing surfaces with no graphite or PTFE, guaranteeing stability in high-temperature and corrosive media.● Dovetail groove housing seal with wide spiral wound gasket achieves zero leakage even under pipeline stress or cyclic thermal shock.● “Live load” packing system maintains constant sealing pressure, automatically compensating for wear and significantly extending packing life.
Application Fields
Widely used in slag lock hoppers, coal lock hoppers, deslagging systems, pressure relief systems, steelmaking, coal chemical processes, and other industries where extreme erosion, corrosion, and thermal shock occur.
Main Technical Parameters
| Item | Y-ZrO Y-TZP | Mg-ZrO₂ M-PSZ | 90 Al₂O₃ | 95 Al₂O₃ | 99 Al₂O₃ | Si₃N₄ | SiC | Common ceramics | Carbide alloy | 45# Steel |
|
Density g/cm³ |
6.0~6.05 | 5.72~5.74 | 3.45~3.55 | 3.6~3.75 | 3.9~3.95 | 3.2~3.33 | 3.15~3.25 | 3.0~3.5 | 14~18 | 7.8 |
|
Hardness HRA/C |
87 | 85 | 90 | 90 | 92 | 92 | 94 | 50~60 | 70 | 36 |
|
Flexural Strength MPa |
1150 | 900 | 350 | 370 | 450 | 1200 | 470 | 20~50 | 2000 | 804 |
|
Fracture Toughness (KIC) MPa√m |
10~12 | 13~15 | 3.4 | 3.6 | 4.5 | 7 | 4 | -- | 20 | 101 |
|
Compressive Strength MPa |
2000 | 1800 | 1700 | 2000 | 2200 | 2800 | -- | -- | 4000 | 2000 |
|
Thermal Shock Resistance °C |
87 | 110 | -- | -- | 50 | 200 | 75 | -- | 500 | 500 |
|
Thermal Expansion Coefficient ×10⁻⁶/°C |
9.6 | 10 | 7.6 | 7.8 | 8.3 | 3.4 | 4 | -- | 7 | 12 |
|
Modulus of Elasticity GPa |
200 | 200 | 310 | 330 | 350 | 300 | 400 | -- | 600 | -- |
|
Crushing Load KN (Φ6mm) |
15 | 10 | 3.5 | 3.6 | 4 | 18 | 3.5 | -- | -- | -- |
|
Using Temperature °C |
<160 | <1000 | <1200 | <1250 | <1500 | <1500 | <1500 | -- | -- | <560 |
|
Water Absorption |
0 | 0 | 0.02% | 0.01% | 0.00% | 0 | 0.50% | 5~10% | -- | -- |
|
Corrosion Prevention |
Good | Good | Good | Good | Good | Good | Good | Flooey | Good | Flooey |
*Data sources: test results or issued original documents.
ANTI-CORROSIVE PERFORMANCE REFERENCE TABLE
| Media | Temperature | ZrO₂ | 99.9% Al₂O₃ | SiC | Si₃N₄ | Graphite | PTFE | Fluororubber | SS304 | SS316 | HC |
| 20% HCL | 60°C | A | A | A | B | A | A | A | C | C | B |
| 20% HCL | 95°C | A | A | A | C | A | A | A | -- | -- | C |
| 90% H₂SO₄ | 60°C | A | A | A | A | A | A | A | C | C | B |
| 90% H₂SO₄ | 95°C | A | A | A | B | A | A | A | C | C | C |
| 60% H₃PO₄ | 60°C | A | A | A | C | A | A | A | C | C | A |
| 60% H₃PO₄ | 95°C | A | A | A | C | A | A | A | C | C | A |
| 10% HF | 60°C | C | B | A | A | A | A | A | C | C | B |
| 46% HF | 95°C | C | C | A | C | A | A | A | -- | -- | C |
| 60% HNO₃ | 60°C | A | A | A | C | B | A | A | A | A | C |
| 60% HNO₃ | 95°C | A | B | A | C | B | A | A | B | B | C |
| 30% NaOH | 60°C | A | B | A | B | A | A | A | A | A | A |
| 30% NaOH | 95°C | B | B | A | C | A | A | A | A | B | A |
A ≤ 0.1mmg/cm²/day: Can be ignored or has no corrosion, recommended for use.
B = 0.1~0.3mmg/cm²/day: Slight or very minor corrosion, use with caution.
C ≥ 0.3mmg/cm²/day: Significant corrosion, not recommended for use.
-- : Intense corrosion, to the extent that measurement is not possible.
Flow Characteristic Sheet of Ceramic Ball Valve
| Core Specifications | O-type ball core | V60° ball core | V45° ball core | V30° ball core |
| DN15 | 10 | 7 | 4 | 3 |
| DN20 | 18.2 | 12 | 8 | 5 |
| DN25 | 29 | 18 | 12 | 8 |
| DN32 | 47 | 30 | 20 | 13 |
| DN40 | 73 | 46 | 31 | 21 |
| DN50 | 114 | 72 | 48 | 32 |
| DN65 | 181 | 115 | 76 | 51 |
| DN80 | 292 | 185 | 123 | 82 |
| DN100 | 456 | 289 | 192 | 128 |
| DN125 | 712 | 452 | 300 | 201 |
| DN150 | 1025 | 650 | 432 | 289 |
| DN200 | 1822 | 1156 | 769 | 514 |
Typical Applications
- ● Polysilicon Industry: Silicon powder venting.● Coal Chemical Industry: Coal powder pressure relief valves and regulating valves; slag lock hopper pressure relief and punch valves; quench water flow regulation; high differential pressure black ash water flow control.● Textile Machinery: Jacketed solution valves.The FCCV5 represents a technologically advanced and globally unique ceramic ball valve solution, offering unmatched performance, safety, and long-term cost savings in the harshest industrial environments.
